Outside Rearview Mirror Glass Replacement (DWW, DWR)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

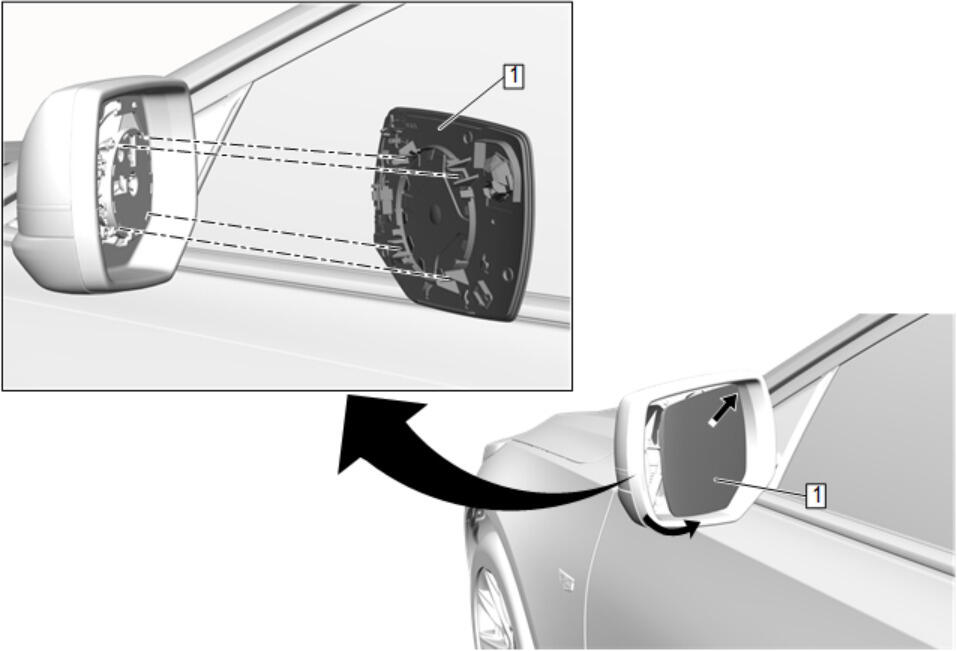

Callout	Component Name
1	WARNING: Refer to Glass and Sheet Metal Handling Warning . Outside Rearview Mirror Glass Procedure Place masking tape over the mirror glass. Apply pressure inward at the top of the mirror face until full travel is reached. Retaining pressure on the mirror face, pull outward until the mirror face is released. Disconnect the electrical connectors.

Callout

Component Name

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

Outside Rearview Mirror Glass

Procedure

Place masking tape over the mirror glass.
Apply pressure inward at the top of the mirror face until full travel is reached.
Retaining pressure on the mirror face, pull outward until the mirror face is released.
Disconnect the electrical connectors.
