Inside Rearview Mirror Replacement (DD8)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

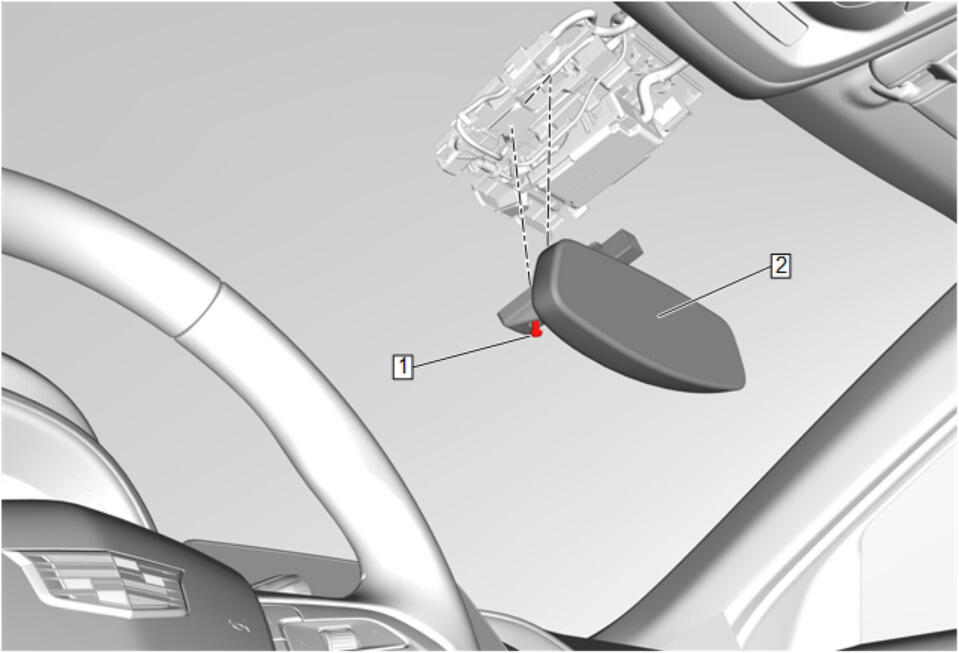

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement
1	Inside Rearview Mirror Bolt CAUTION: Refer to Fastener Caution . Tighten 1.8 N.m (16 lb in)
2	Inside Rearview Mirror Procedure Disconnect the electrical connector. Slide inside rearview mirror off the mounting plate.

Callout

Component Name

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement

Inside Rearview Mirror Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
1.8 N.m (16 lb in)

Inside Rearview Mirror

Procedure

Disconnect the electrical connector.
Slide inside rearview mirror off the mounting plate.
