Inside Rearview Mirror Replacement (D31)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

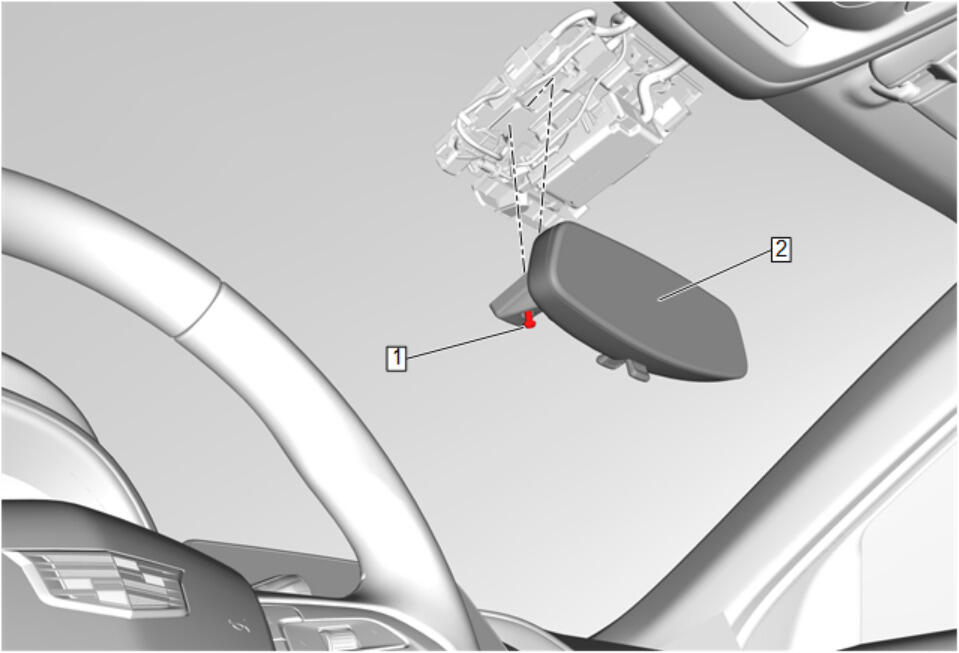

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover ReplacementRefer to Glass and Sheet Metal Handling Warning . |
|
| 1 | Inside Rearview Mirror Bolt
CAUTION:
Refer to Fastener Caution . Tighten 1.8 N.m (16 lb in) |
| 2 | Inside Rearview Mirror Procedure Slide inside rearview mirror off the mounting plate. |
