Rear Compartment Floor Panel Trim Support Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

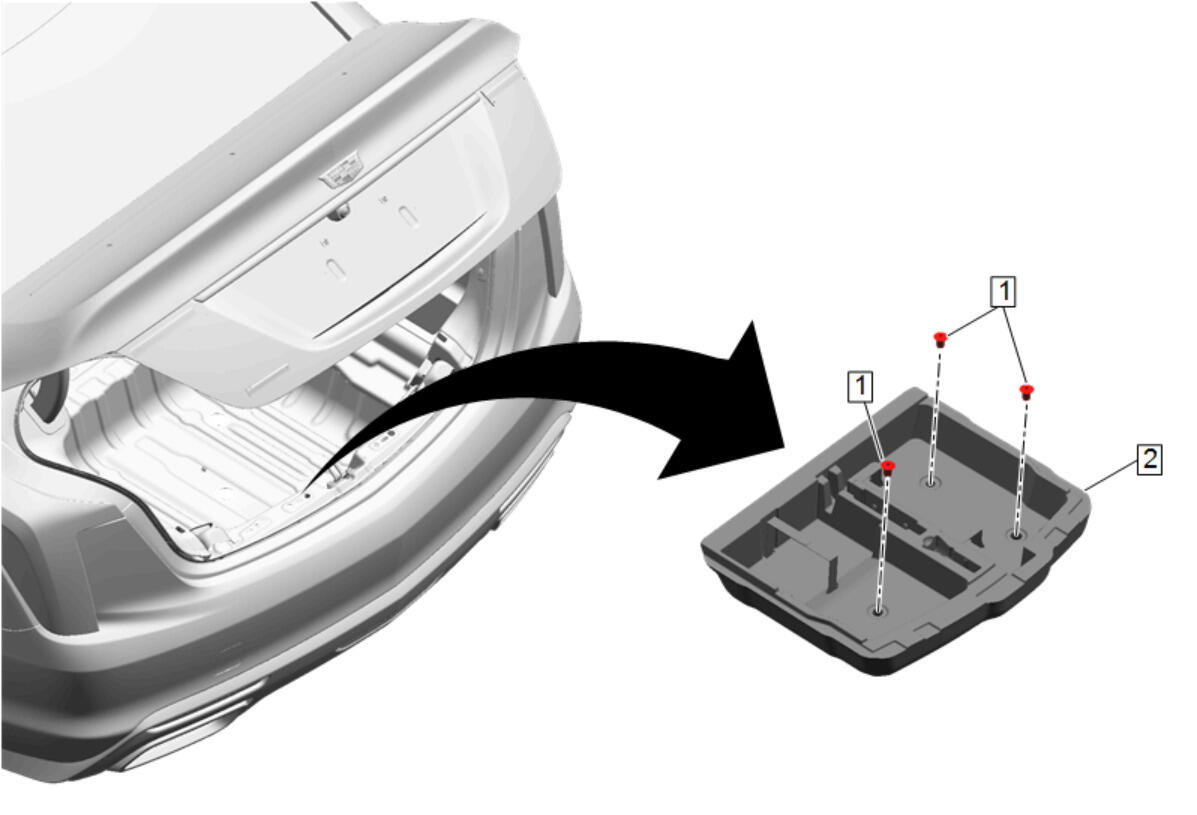

Callout	Component Name
Preliminary Procedures Rear Compartment Floor Panel Trim Replacement (Load Floor) , or Rear Compartment Floor Panel Trim Replacement (5 Bar) Rear End Trim Finish Panel Replacement
1	Rear Compartment Floor Stowage Compartment Divider Retainer [3x] CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
2	Rear Compartment Floor Panel Trim Support

Callout

Component Name

Preliminary Procedures

Rear Compartment Floor Panel Trim Replacement (Load Floor) , or Rear Compartment Floor Panel Trim Replacement (5 Bar)
Rear End Trim Finish Panel Replacement

Rear Compartment Floor Stowage Compartment Divider Retainer [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
3 N.m (27 lb in)

Rear Compartment Floor Panel Trim Support
