Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Disable the SIR system. SIR Disabling and Enabling
- Instrument Panel Upper Trim Panel - Right Side - Remove - Instrument Panel Upper Trim Panel Replacement - Right Side
Insert the flat tip driver (3) in between the airbag chute (2) and the air bag module hook (1) at the dotted line or base of hook, as shown above in graphic.
- Tilt the flat tip driver forward until the air bag module hooks (1) break or bend enough to relieve the tension and allow for easier removal of the airbag from the chute.

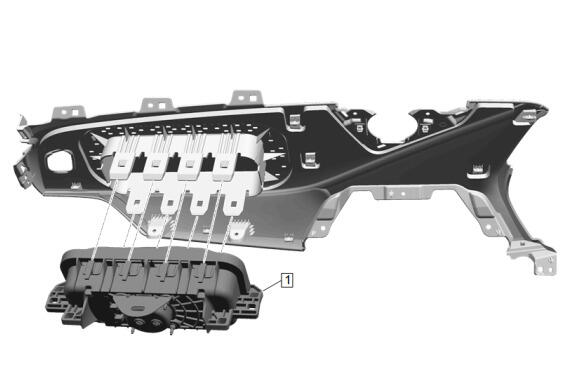

Instrument Panel Airbag (1) - Remove
- Inflatable Restraint Module Handling and Scrapping
