Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Refer to SIR Warning .

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

CAUTION:

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

CAUTION:

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

  1. Disable the SIR system. SIR Disabling and Enabling
  2. GM5423347Courtesy of GENERAL MOTORS COMPANY

    Pull the windshield garnish molding (1) rearwards to release the tether from the A pillar.

  3. Access the windshield garnish bolt (2) which is located on the backside of the windshield garnish molding (1) and secures the tether to the A pillar.
  4. Windshield Garnish Molding Bolt (2) - Remove
  5. Disconnect the electrical connector.
  6. Windshield Garnish Molding (1) - Remove
  7. GM5423272Courtesy of GENERAL MOTORS COMPANY

    Sunshade Retainer Bolt Cover (1) - Remove

  8. Sunshade Bolt (2) - Remove [2x]
  9. Squeeze the tabs at the base of the sunshade to detach it from the roof panel and allow the headliner with the sunshade attached to be lowered.
  10. GM5423271Courtesy of GENERAL MOTORS COMPANY

    Open the sunshade support bolt access cover with an appropriate tool.

  11. Sunshade Support Bolt (1) - Remove
  12. GM5334276Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Do not exert downward force at the forward or rearward edge of the roof console assembly as irreversible damage will occur.

    With a flat-bladed trim tool, release the tab on the left side at the most rearward of the roof console (1) and pull down on console, then release the retaining clip in the middle of the console and pull down, then release the retaining clip at the most forward of the console and pull down the console.

  13. With a flat-bladed trim tool, release the tab on the right side at the most rearward of the roof console (1) and pull down on console, then release the retaining clip in the middle of the console and pull down, then release the retaining clip at the most forward of the console and pull down the console.
  14. GM5334280Courtesy of GENERAL MOTORS COMPANY

    Pull the roof console (1) rearward to remove the front roof console tab from the headliner.

  15. Disconnect the electrical connectors.
  16. GM5330333Courtesy of GENERAL MOTORS COMPANY

    Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Remove

  17. GM5330339Courtesy of GENERAL MOTORS COMPANY

    Using a suitable plastic trim tool, carefully pry downward on the windshield multifunction sensor mount bracket cover (1) to release it from the windshield.

  18. Pull downward to remove the windshield multifunction sensor mount bracket cover (1) from the windshield.
  19. GM5423238Courtesy of GENERAL MOTORS COMPANY

    Fold the assist handle downward and hold. (2)

  20. Use a small flat-bladed tool to open the assist handle covers to access the bolts.
  21. Roof Rail Assist Handle Bolt (1) - Remove [2x]
  22. Roof Rail Assist Handle (2) - Remove
  23. GM5423135Courtesy of GENERAL MOTORS COMPANY

    Fold the assist handle downward and hold. (2)

  24. Use a small flat-bladed tool to open the assist handle covers to access the bolts.
  25. Roof Rail Rear Assist Handle Bolt (1) - Remove [2x]
  26. Roof Rail Rear Assist Handle (2) - Remove
  27. GM5494003Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

    Center Pillar Upper Trim Panel Bolt Cap (1) - Remove

  28. Center Pillar Upper Garnish Molding Bolt (2) - Remove
  29. GM5494005Courtesy of GENERAL MOTORS COMPANY

    Pull the trim panel toward the inside of the vehicle to disengage the retainers.

  30. Center Pillar Upper Trim Panel (1) - Reposition
  31. GM5494006Courtesy of GENERAL MOTORS COMPANY

    Fold the rear seat back to the downward position.

  32. Quarter Window Trim Finish Panel Bolt Cap (1) - Remove
  33. Quarter Window Trim Finish Panel Bolt (2) - Remove
  34. GM5494007Courtesy of GENERAL MOTORS COMPANY

    Disengage the retainers, starting at the front and working rearward on both sides of the vehicle.

    35. NOTE:

    The Quarter Upper Trim Panel does not need to be fully removed from the vehicle.

  35. Quarter Upper Trim Panel (1) - Reposition
  36. GM5433860Courtesy of GENERAL MOTORS COMPANY

    Insert a suitable flat-bladed plastic trim tool between the parameter of the high mount stop lamp opening cover (1) and headlining trim panel (2).

  37. Separate the high mount stop lamp opening cover (1) from the headlining trim panel (2).
  38. GM5433861Courtesy of GENERAL MOTORS COMPANY

    Pull downward to release the retaining tabs.

  39. High Mount Stop Lamp Opening Cover (1) - Remove

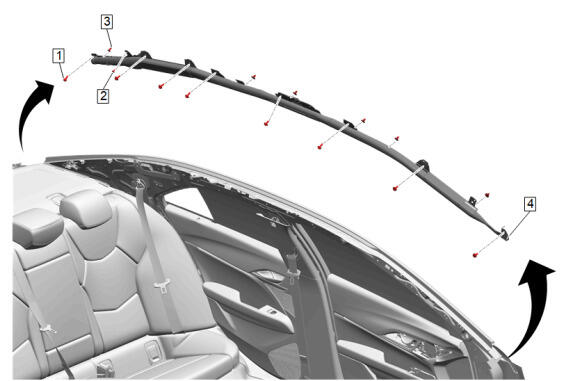

  40. GM5507599Courtesy of GENERAL MOTORS COMPANY

    Lower the headlining trim panel.

  41. Roof Rail Airbag Bolt (1) - Remove [8x]
  42. Roof Rail Airbag Bolt (2) - Remove
  43. Front and Rear and 3rd Row Seat Roof Rail Airbag Retainer (3) - Remove [6x]
  44. Disconnect the electrical connectors.
  45. Front and Rear Row Seat Roof Rail Airbag (4) - Remove
  46. Inflatable Restraint Module Handling and Scrapping
