Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

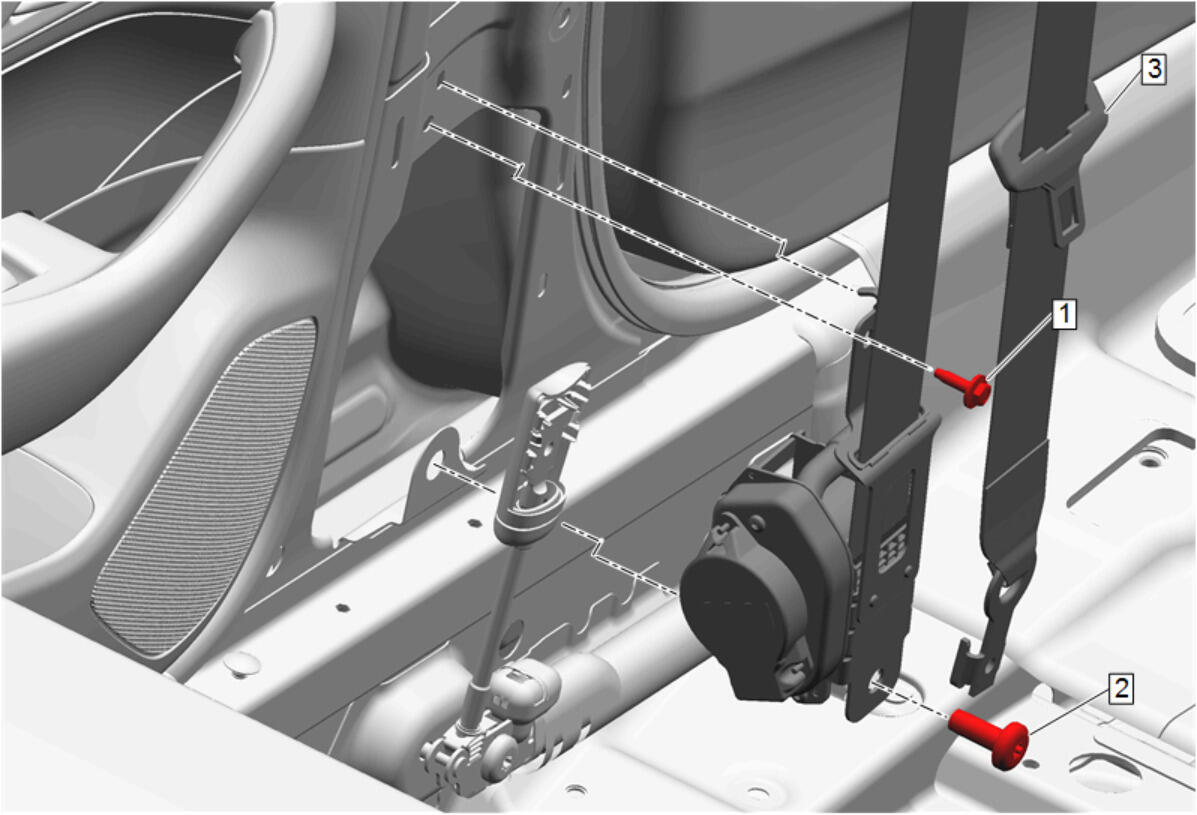

  1. GM5331637Courtesy of GENERAL MOTORS COMPANY

    Front Seat Belt Retractor (3) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Front Seat Belt Retractor Bolt -Lower (2) - Install and tighten - Fastener Specifications
  3. Front Seat Belt Retractor Bolt -Upper (1) - Install and tighten - Fastener Specifications
  4. Connect the electrical connector.

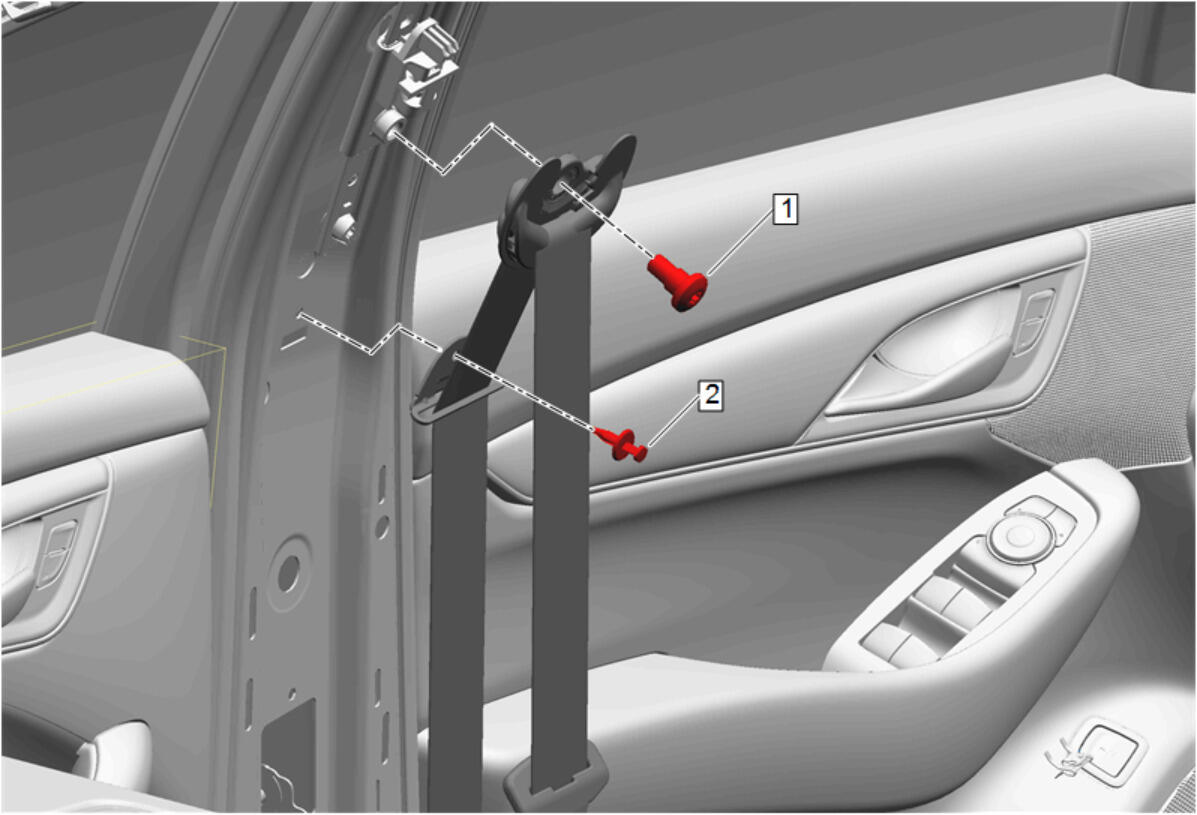

  5. GM5331636Courtesy of GENERAL MOTORS COMPANY

    Front Seat Belt Retainer (2) - Install

  6. Front Seat Belt Retractor D Ring Bolt (1) - Install and tighten - Fastener Specifications

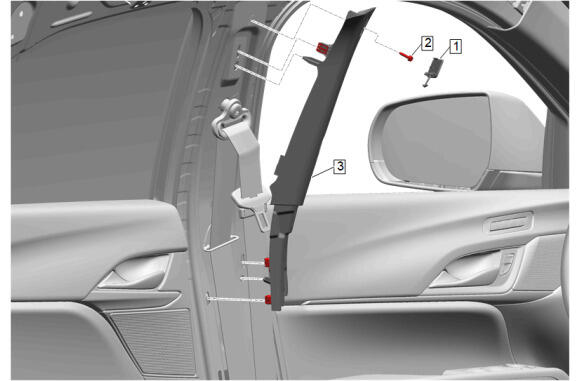

  7. GM5481940Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    When replacing the center pillar upper trim panel, feed the seat belt through the panel.

    Center Pillar Upper Trim Panel (3) - Install

  8. Center Pillar Upper Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications
  9. Center Pillar Upper Trim Panel Bolt Cap (1) - Install
  10. GM5331576Courtesy of GENERAL MOTORS COMPANY

    Center Pillar Lower Trim Panel (1) - Install

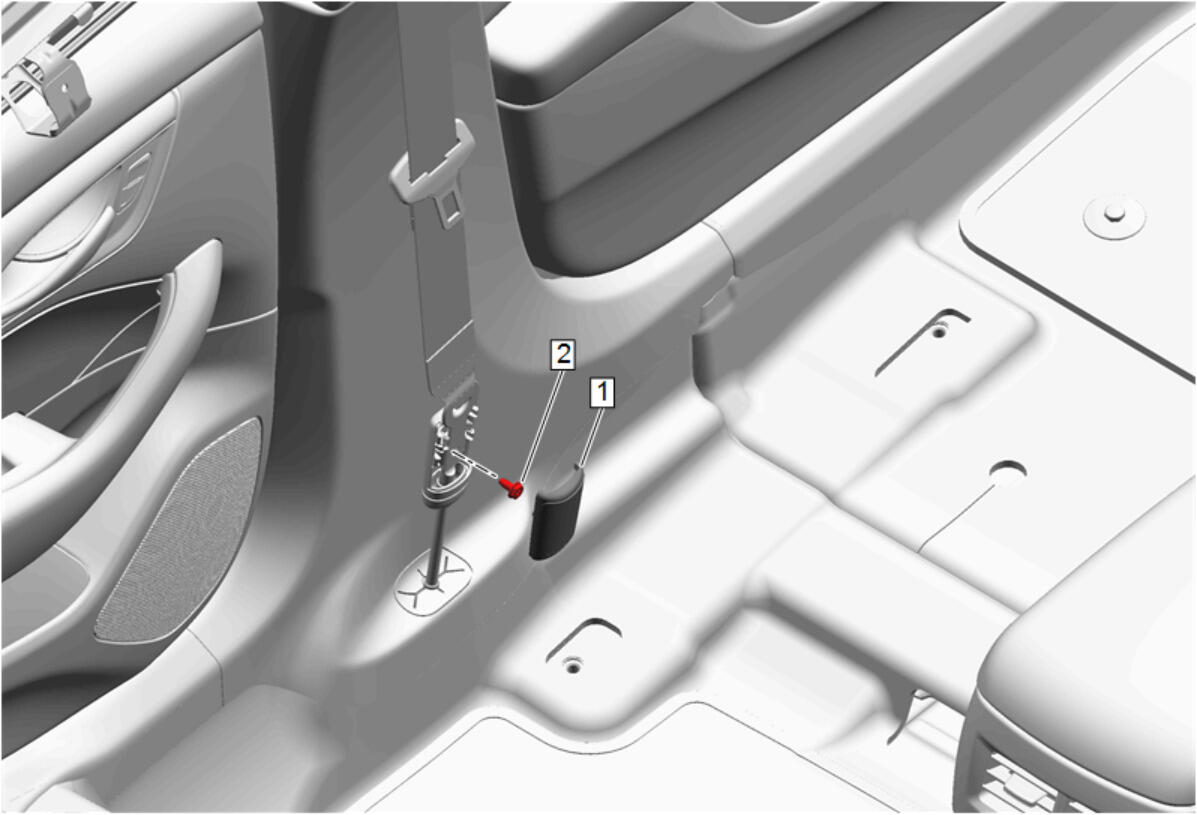

  11. GM5331621Courtesy of GENERAL MOTORS COMPANY

    Front Seat Belt Anchor Plate Tensioner Bolt- Upper (2) - Install and tighten - Fastener Specifications

  12. Front Seat Belt Anchor Plate Tensioner Cover (1) - Install
  13. GM5480292Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Sill Garnish Molding (1) - Install

  14. GM5324688Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Back Bolster (2) - Install

  15. Rear Seat Back Bolster Nut (1) - Install and tighten - Fastener Specifications
  16. GM5404968Courtesy of GENERAL MOTORS COMPANY

    Slide the rear seat back bolster retainer lock (1) toward the rear of the vehicle.

  17. GM5544148Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Cushion (1) - Install - Rear Seat Cushion Removal and Installation

  18. GM5458216Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Reposition the front floor panel carpet as needed.

    Starting at the front of the front side door sill garnish molding (1), engage the clip on the forward vertical wall and locator pin.

  19. Work your way rearward engaging all the front side door sill garnish molding clips.
  20. Front Side Door Sill Garnish Molding (1) - Install
  21. GM5421735Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover (1) - Install

  22. Enable the SIR System. SIR Disabling and Enabling
