Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Refer to SIR Warning .

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

WARNING:

Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary:

  • The seat cushion frame
  • The seat recliner, if equipped
  • The seat adjuster
  • The seat back frame

Failure to do so may cause future personal injury.

  1. Disable the SIR system. SIR Disabling and Enabling
  2. GM5421735Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    With a flat bladed plastic trim tool, start at the front and work your way back to release the clips.

  3. Instrument Panel Outer Trim Cover (1) - Remove
  4. { If equipped } Disconnect the electrical connector.
  5. GM5458216Courtesy of GENERAL MOTORS COMPANY

    Starting at the rear of the front side door sill garnish molding (1), pull upward at the b-pillar joint to disengage the garnish molding.

  6. Work your way forward disengaging all the front side door sill garnish molding clips then pull rearward to disengage the clip on the forward vertical wall.
  7. Front Side Door Sill Garnish Molding (1) - Remove
  8. GM5544148Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Cushion (1) - Remove - Rear Seat Cushion Removal and Installation

  9. GM5404968Courtesy of GENERAL MOTORS COMPANY

    Fold the rear seat back to the downward position.

  10. Access the rear seat back bolster retainer lock (1) through a slot in the upper portion of the bolster.
  11. Slide the rear seat back bolster retainer lock (1) toward the front of the vehicle.
  12. GM5324688Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Back Bolster Nut (1) - Remove

  13. Squeeze the rear seat back bolster retainer to release it.
  14. Rear Seat Back Bolster (2) - Remove
  15. GM5480292Courtesy of GENERAL MOTORS COMPANY

    Use the appropriate plastic trim tool to aid in the removal of the rear side door sill garnish molding.

  16. Rear Side Door Sill Garnish Molding (1) - Remove
  17. GM5331621Courtesy of GENERAL MOTORS COMPANY

    Front Seat Belt Anchor Plate Tensioner Cover (1) - Remove

  18. Front Seat Belt Anchor Plate Tensioner Bolt- Upper (2) - Remove
  19. GM5331576Courtesy of GENERAL MOTORS COMPANY

    Center Pillar Lower Trim Panel (1) - Remove

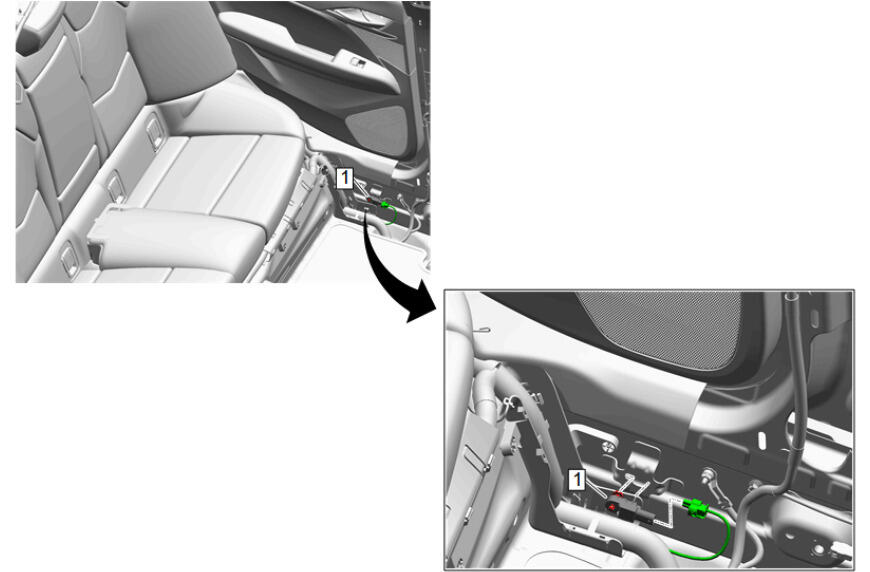

  20. GM5443253Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Integral sensor assembly bolt uses Left Hand threads. Use counterclockwise rotation to loosen fastener at TORX® tip end. If accessing at pan head end of the fastener, use clockwise rotation to loosen bolt.

    Loosen the fastener and slide the sensor out of the keyhole slot.

  21. The bolts are integral to the sensor, DO NOT remove separately.
  22. Disconnect the electrical connector.
  23. Airbag Side Impact Rear Sensor (1) - Remove
  24. Inflatable Restraint Module Handling and Scrapping
