Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Electrical Connector @ Heated Oxygen Sensor-Bank 2 Sensor 1 - Disconnect - Heated Oxygen Sensor Replacement - Bank 2 Sensor 1
  2. Electrical Connector @ Heated Oxygen Sensor-Bank 2 Sensor 2 - Disconnect - Heated Oxygen Sensor Replacement - Bank 2 Sensor 2

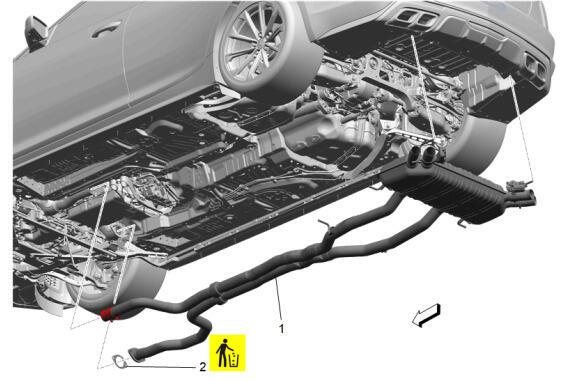

  3. GM5406663Courtesy of GENERAL MOTORS COMPANY

    Exhaust Muffler (1) - Remove - Exhaust Muffler Replacement (LT4)

  4. GM5867464Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Brace Bracket (3) - Remove - Catalytic Converter Brace Bracket Replacement (LT4)

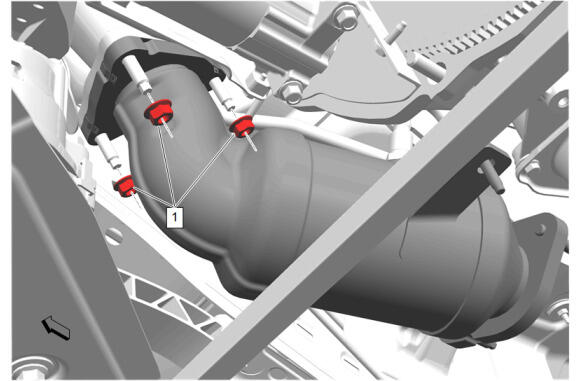

  5. GM5867807Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Nut (1) - Remove [3x]

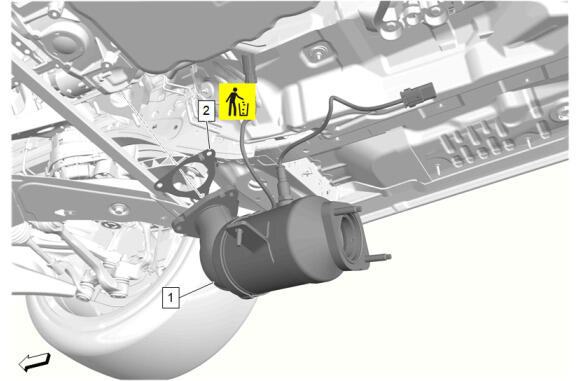

  6. GM5867924Courtesy of GENERAL MOTORS COMPANY

    Warm Up Three-Way Catalytic Converter (1) - Remove

  7. Catalytic Converter Gasket (2) - Remove and DISCARD
  8. Transfer components as necessary.
