Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.
WARNING:
Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury.
- Charge Air Cooler Inlet Air Hose-Right Side - Remove - Charge Air Cooler Inlet Air Hose Replacement - Right Side
- Turbocharger Wastegate Actuator-Right Side - Remove - Turbocharger Wastegate Actuator Replacement - Right Side

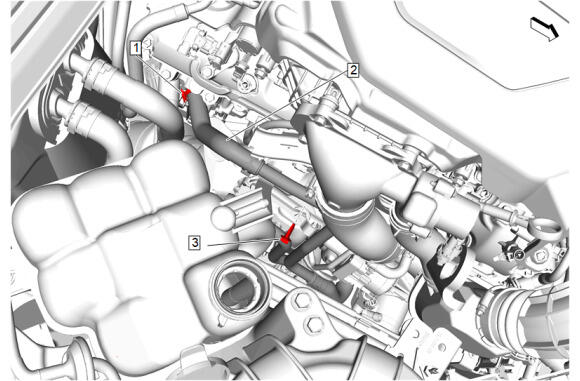

{ If equipped } Heater Hose Clip Bracket Bolt (3) - Remove
Turbocharger Heat Shield Bolt (1) - Remove [2x]
- Turbocharger Heat Shield Bolt (2) - Remove
- Turbocharger Heat Shield (3) - Remove
