Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

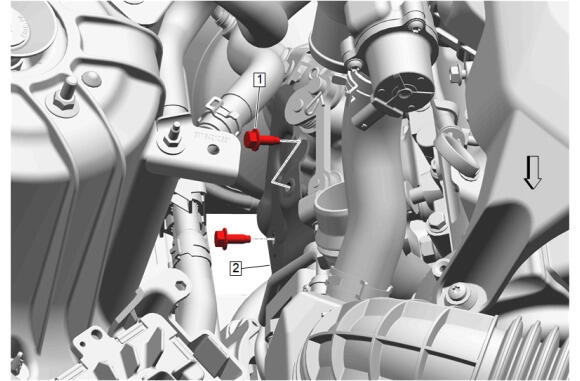

Turbocharger Heat Shield (2) - Install
- Turbocharger Heat Shield Bolt (2) - Install and tighten [2x] 9 N.m (80 lb in)
Turbocharger Heat Shield-Upper Right (3) - Install - Turbocharger Heat Shield Replacement - Right Side Upper (LGY)
CAUTION:
Refer to Fastener Caution .
