Exhaust Rear Muffler Insulator Replacement (LGY, LT4)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

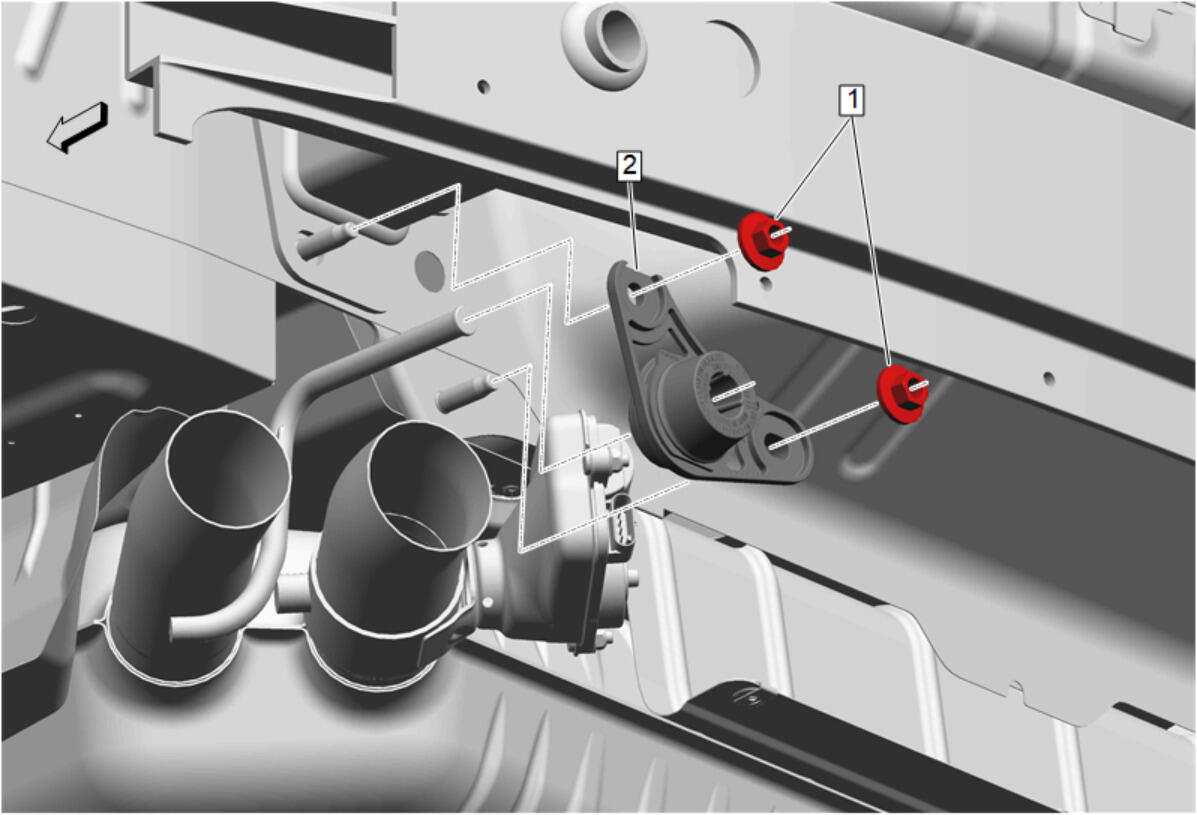

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Bumper Fascia Removal and Installation (without Blackwing) , or Rear Bumper Fascia Removal and Installation (with Blackwing) |
|
| 1 | Exhaust Muffler Hanger Bracket Nut [2x]
CAUTION:
Refer to Fastener Caution . Tighten 43 N.m (32 lb ft) |
| 2 | Exhaust Rear Muffler Insulator |
