Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Oil Level Indicator and Tube (1) - Remove - Oil Level Indicator Tube Replacement

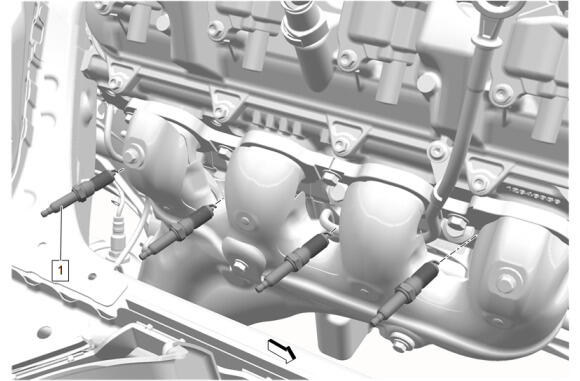

Gas Engine Ignition Spark Plug-Right Side (1) - Remove [4x] - Gas Engine Ignition Spark Plug Replacement - Right Side
Warm Up Three-Way Catalytic Converter - Right Side (1) - Remove - Warm Up Three-Way Catalytic Converter Replacement - Right Side (LT4)

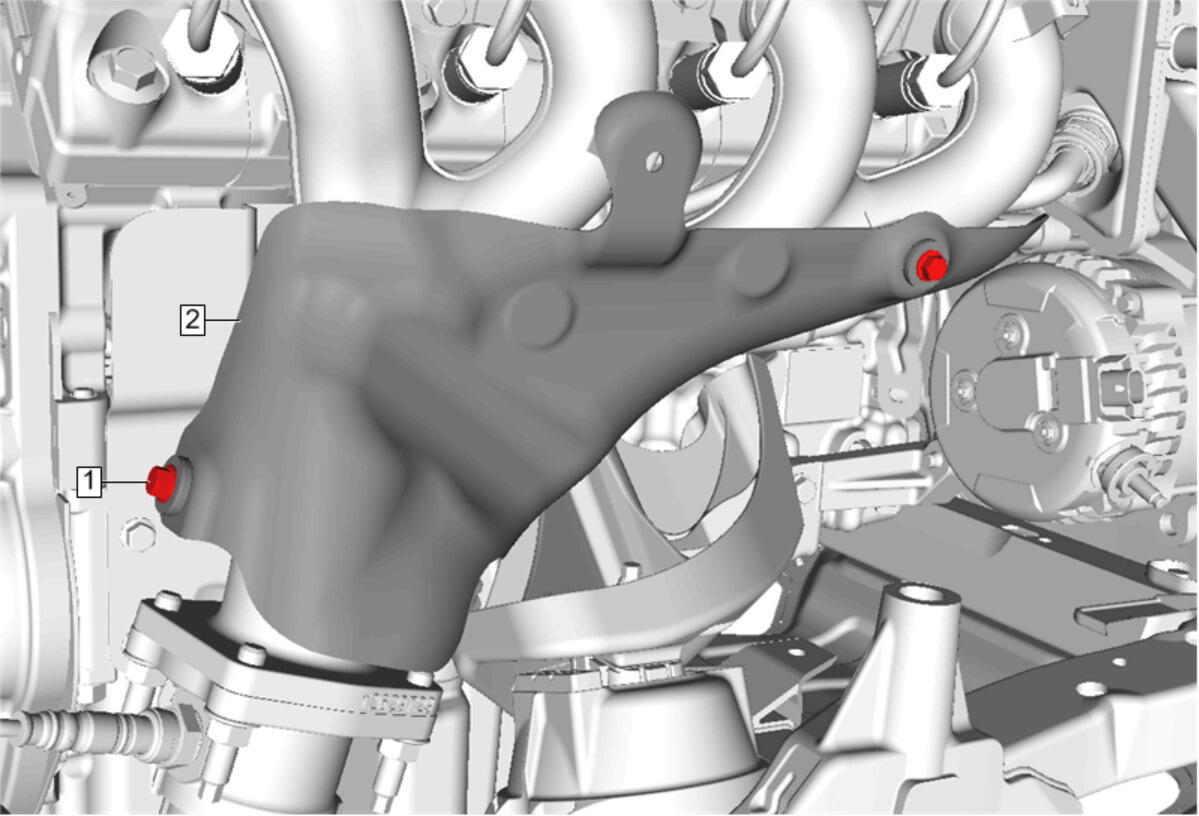

Exhaust Manifold Heat Shield-Right Lower (2) - Remove - Exhaust Manifold Heat Shield Replacement - Right Lower (LT4)

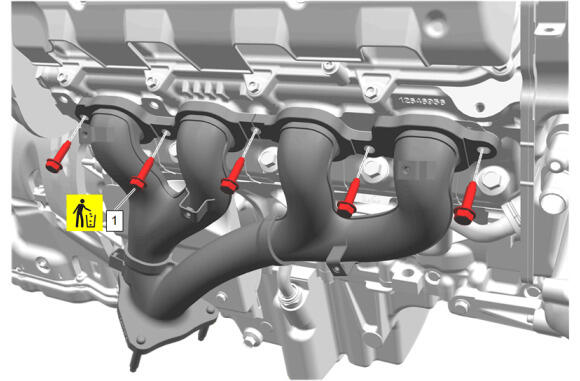

Exhaust Manifold Bolt (1) - Remove and DISCARD [5x]

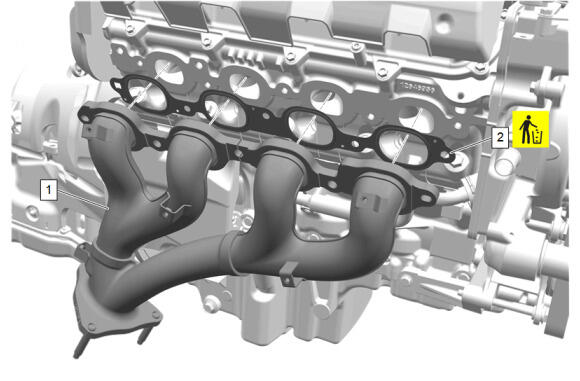

Exhaust Manifold (1) - Remove
- Exhaust Manifold Gasket (2) - Remove and DISCARD
