Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

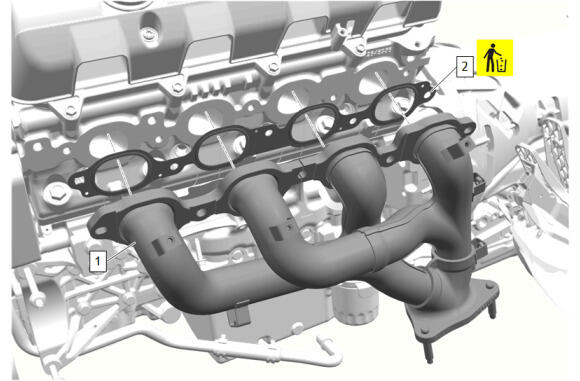

Exhaust Manifold Gasket (2) - Install NEW
Exhaust Manifold (1) - Install
Courtesy of GENERAL MOTORS COMPANY

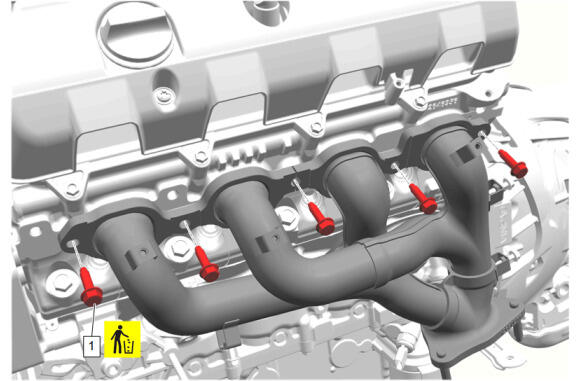

Exhaust Manifold Bolt (1) - Install NEW [5x] - Exhaust Manifold Installation - Left Side
Courtesy of GENERAL MOTORS COMPANY

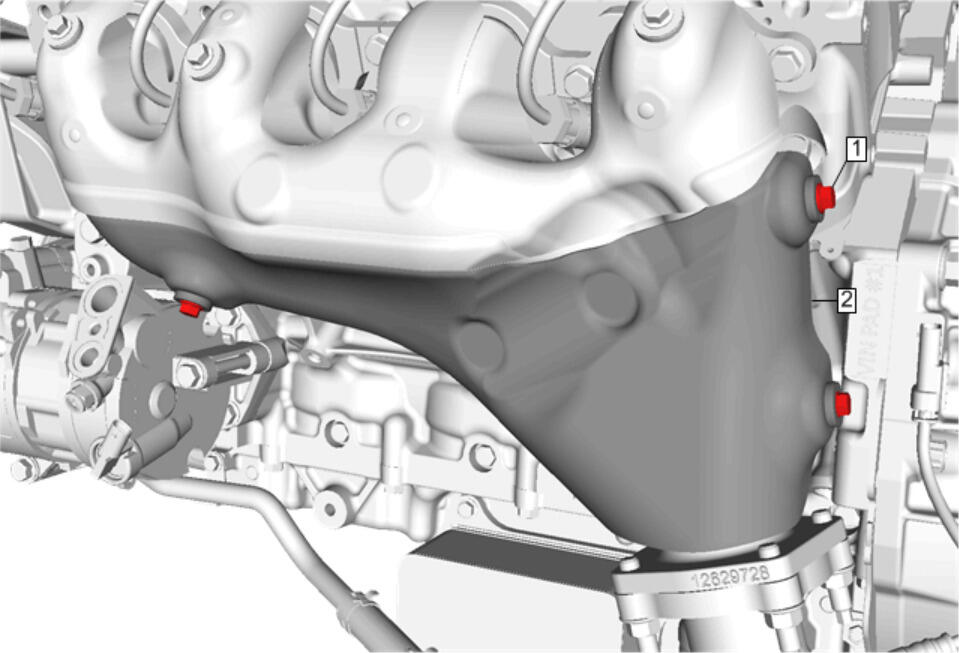

Exhaust Manifold Heat Shield-Left Lower (2) - Install - Exhaust Manifold Heat Shield Replacement - Left Lower (LT4)
Courtesy of GENERAL MOTORS COMPANY

Mid Intermediate Steering Shaft (1) - Install - Mid Intermediate Steering Shaft Replacement (RWD)
Courtesy of GENERAL MOTORS COMPANY

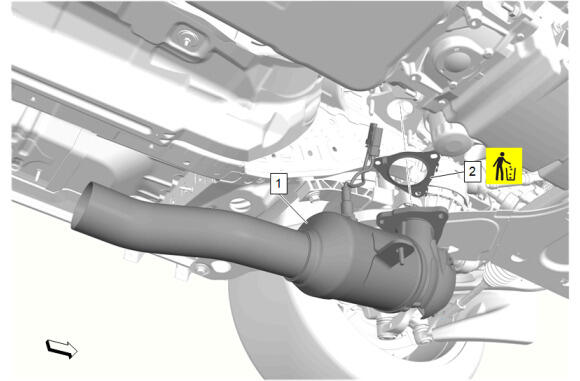

Warm Up Three-Way Catalytic Converter - Left Side (1) - Install - Warm Up Three-Way Catalytic Converter Replacement - Left Side (LT4)
Courtesy of GENERAL MOTORS COMPANY

Gas Engine Ignition Spark Plug-Left Side (1) - Install [4x] - Gas Engine Ignition Spark Plug Replacement - Left Side
