Exhaust Manifold Heat Shield Replacement - Right Upper (LT4)
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

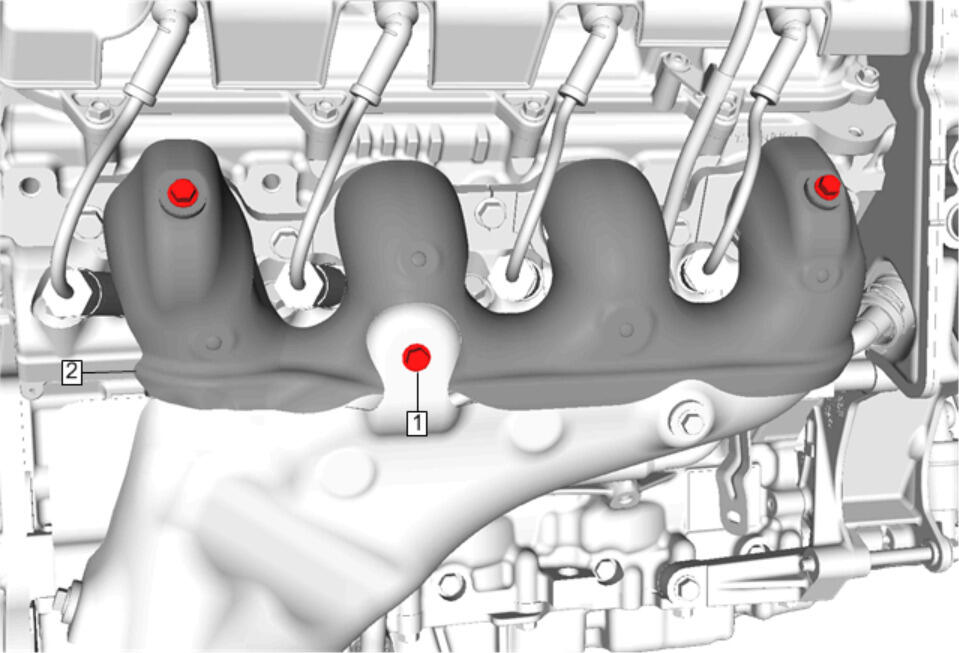

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Hot Exhaust System Warning . |
|
| 1 | Exhaust Manifold Heat Shield Bolt [3x]
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Exhaust Manifold Heat Shield |
