Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

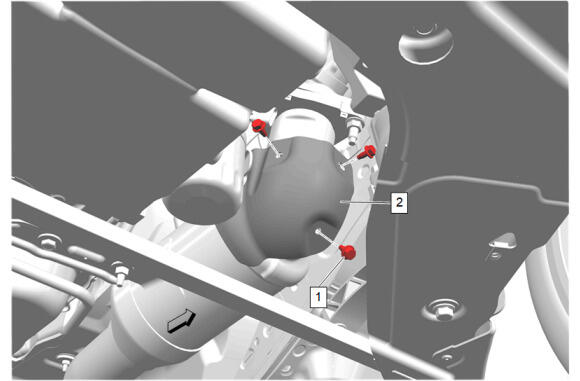

Catalytic Converter Heat Shield (2) - Install
- Catalytic Converter Heat Shield Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)
- Lower the vehicle.
CAUTION:
Refer to Fastener Caution .
