Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Always replace disc brake pads in axle sets.

Set the parking brake in Service Mode.
1. Install a scan tool.
2. Turn the ignition ON with the engine OFF.
3. Select Electronic Brake Control Module.
4. Select Control Functions.
5. Select Rear Brake Caliper Piston Retract.
Inspect the fluid level in the brake master cylinder reservoir.
If the brake fluid level is higher than midway between the maximum-full point and the minimum allowable level, remove brake fluid to the midway point before proceeding.
If the brake fluid level is midway between the maximum-full point and the minimum allowable level, no brake fluid needs to be removed before proceeding.
Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
Raise and support the vehicle. Lifting and Jacking the Vehicle
Remove the tire and wheel assembly. Tire and Wheel Removal and Installation (without J57)
Courtesy of GENERAL MOTORS COMPANY
NOTE:
- DO NOT use any air tools to remove or install the guide pin bolts. Use hand tools ONLY.
- Install an open end wrench to hold the caliper guide pin in line with the brake caliper while removing or installing caliper guide pin bolt. DO NOT allow the open end wrench to come in contact with the brake caliper. Allowing the open end wrench to come in contact with the brake caliper will cause a pulsation when the brakes are applied.

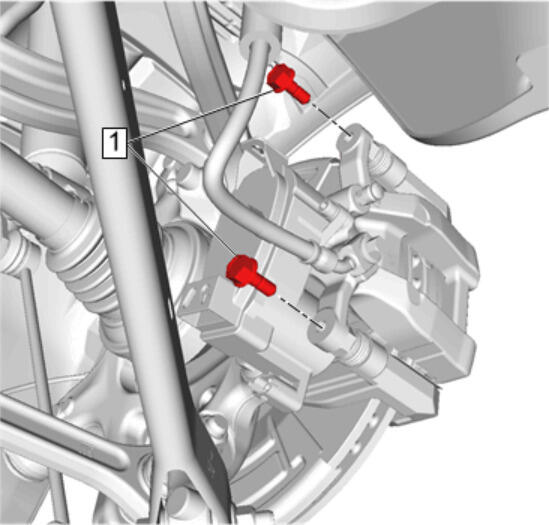

Brake Caliper Guide Pin Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Support the brake caliper with heavy mechanic wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.

NOTE:
It is not necessary to disconnect the rear brake hose.

Remove the rear brake caliper and support the rear brake caliper with heavy mechanics wire. Rear Brake Caliper Replacement (JL9, J56)
Courtesy of GENERAL MOTORS COMPANY

Inner Disc Brake Pad (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Outer Disc Brake Pad (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Rear Disc Brake Pad Retainer Spring (1) - Remove and DISCARD [2x]
