Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

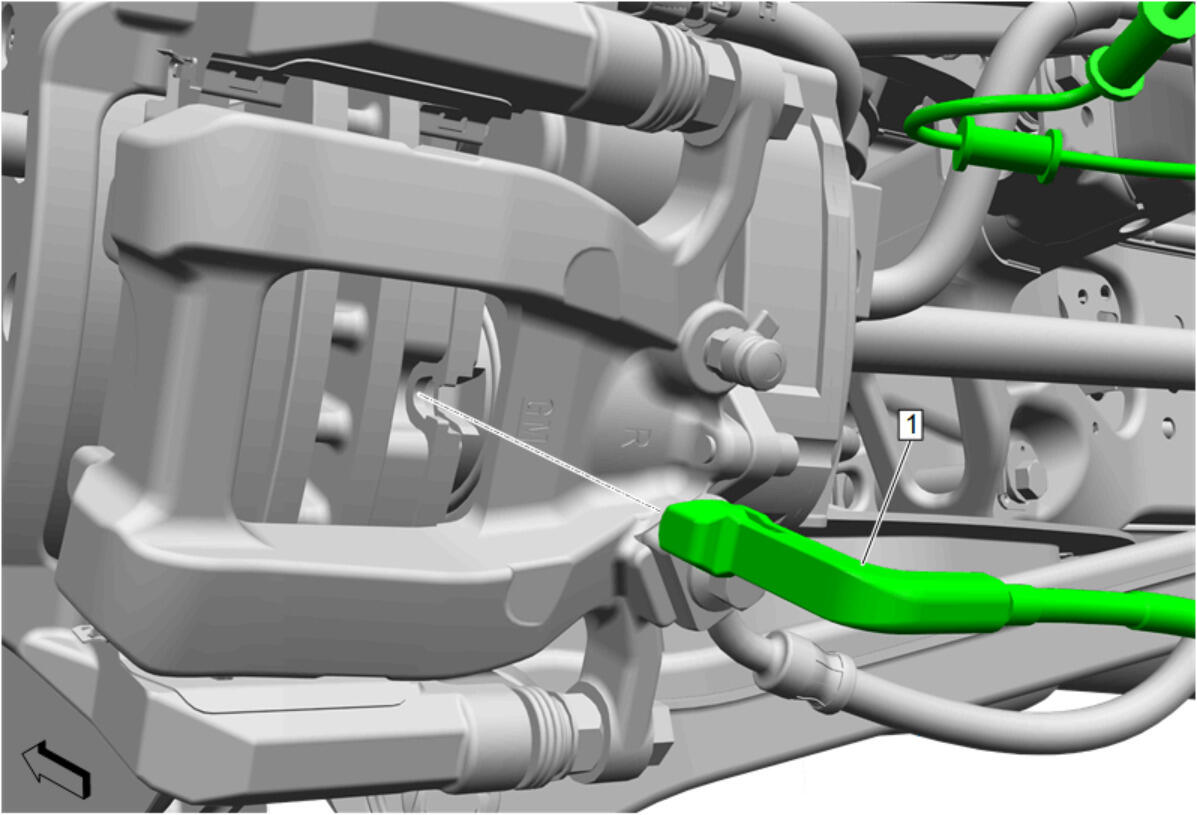

  1. GM5316632Courtesy of GENERAL MOTORS COMPANY

    Rear Disc Brake Pad Wear Sensor (1) - Install

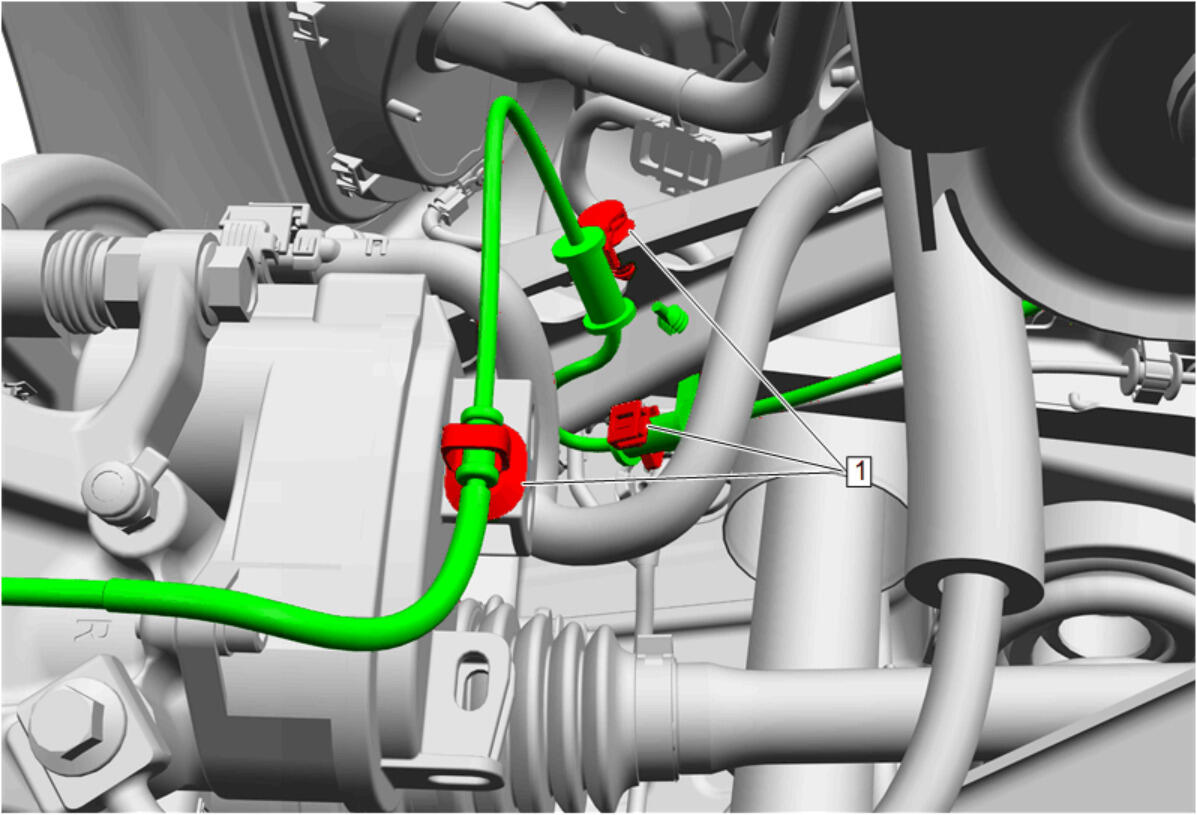

  2. GM5316659Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Install [3x]

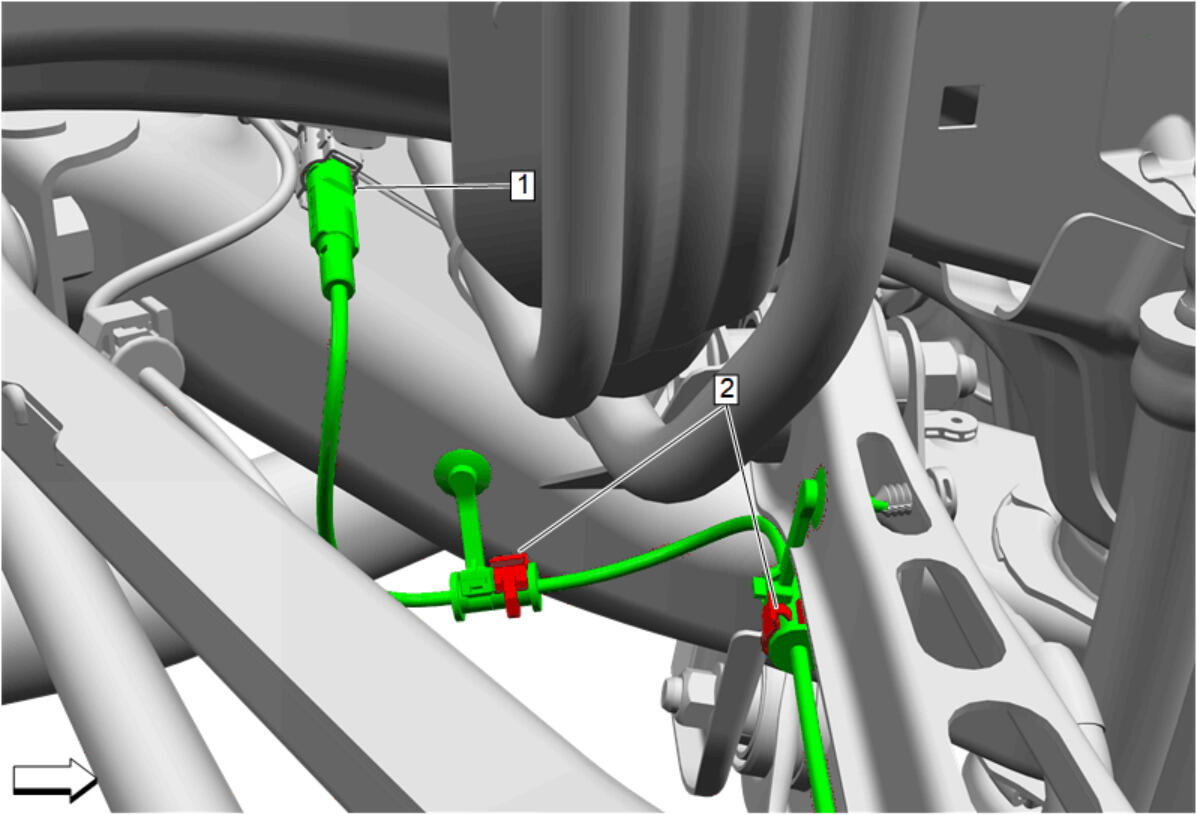

  3. GM5316669Courtesy of GENERAL MOTORS COMPANY

    Retainer (2) - Install [2x]

  4. Connect the electrical connector. (1)
  5. Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation (without J57)
  6. Remove the support and lower the vehicle.
