Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Using the CH-42450-A Wheel Hub Resurfacing Kit, thoroughly clean any rust or corrosion from the mating surface of the hub/axle flange.
- Using the CH-41013 Rotor Resurfacing Kit, thoroughly clean any rust or corrosion from the mating surface and mounting surface of the brake rotor.
- Inspect the mating surfaces of the hub/axle flange and the rotor to ensure there are no foreign particles or debris remaining.
Brake Rotor (1) - Install
- CAUTION:

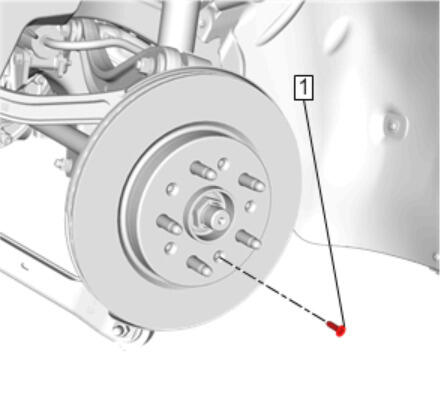

Rear Brake Rotor Bolt (1) - Install and tighten 9 N.m (80 lb in)

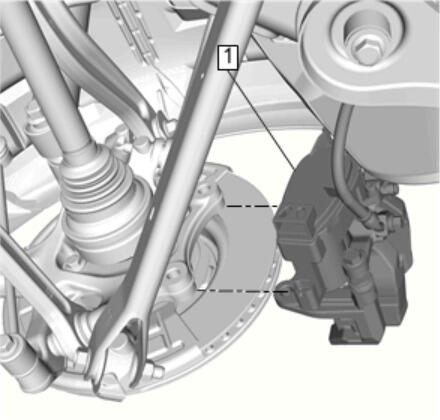

Brake Caliper and Bracket Assembly (1) - Install - Rear Brake Caliper Bracket Replacement
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation (without J57)
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Calibrate the park brake. Park Brake Calibration
- Burnish the brake pads and rotors. Brake Pad and Rotor Burnishing .
NOTE:
Whenever the brake rotor has been separated from the hub/axle flange, any rust or contaminates should be cleaned from the hub/axle flange and the brake rotor mating surfaces. Failure to do this may result in excessive assembled lateral runout (LRO) of the brake rotor, which could lead to brake pulsation.
