Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Install the disc brake rotor protectors and remove the tire and wheel assembly. Tire and Wheel Removal and Installation (with J57) .

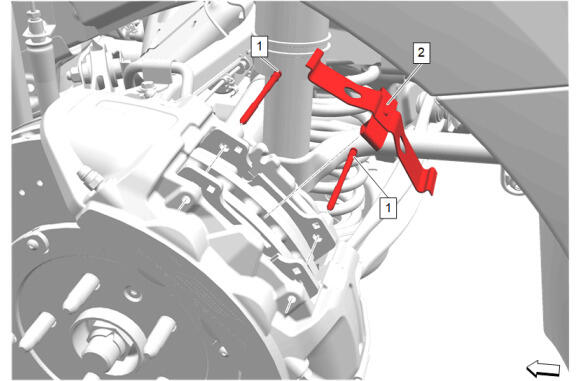

Rear Brake Caliper Guide Pin (1) - Remove [2x]
- Rear Disc Brake Pad Spring (2) - Remove
CAUTION:
Disc brake rotor protectors MUST be installed prior to tire and wheel assembly removal to avoid ceramic brake rotor damage due to contact between the tire and wheel assembly and the rotor. If the ceramic brake rotor is damaged replacement may be required.
