Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

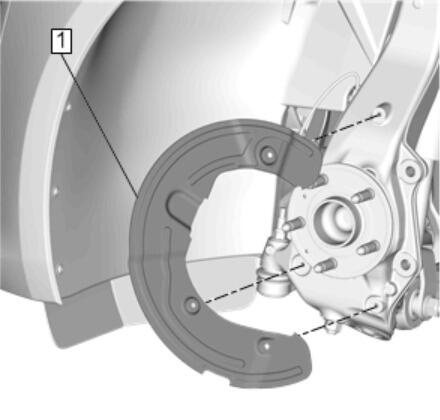

  1. GM4246670Courtesy of GENERAL MOTORS COMPANY

    Front Brake Shield (1) - Install

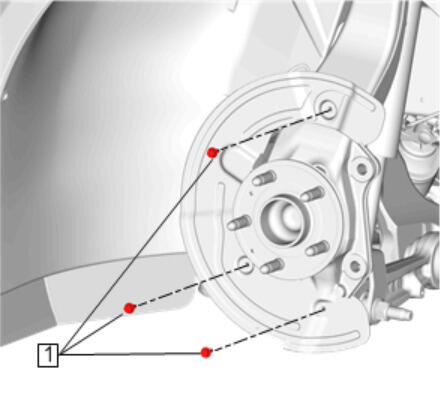

  2. GM4246668Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Front Brake Shield Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)

  3. Front Brake Rotor - Install - Front Brake Rotor Replacement (J56) , or Front Brake Rotor Replacement (JL9)
