Differential Carrier Bushing Replacement - Rear

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

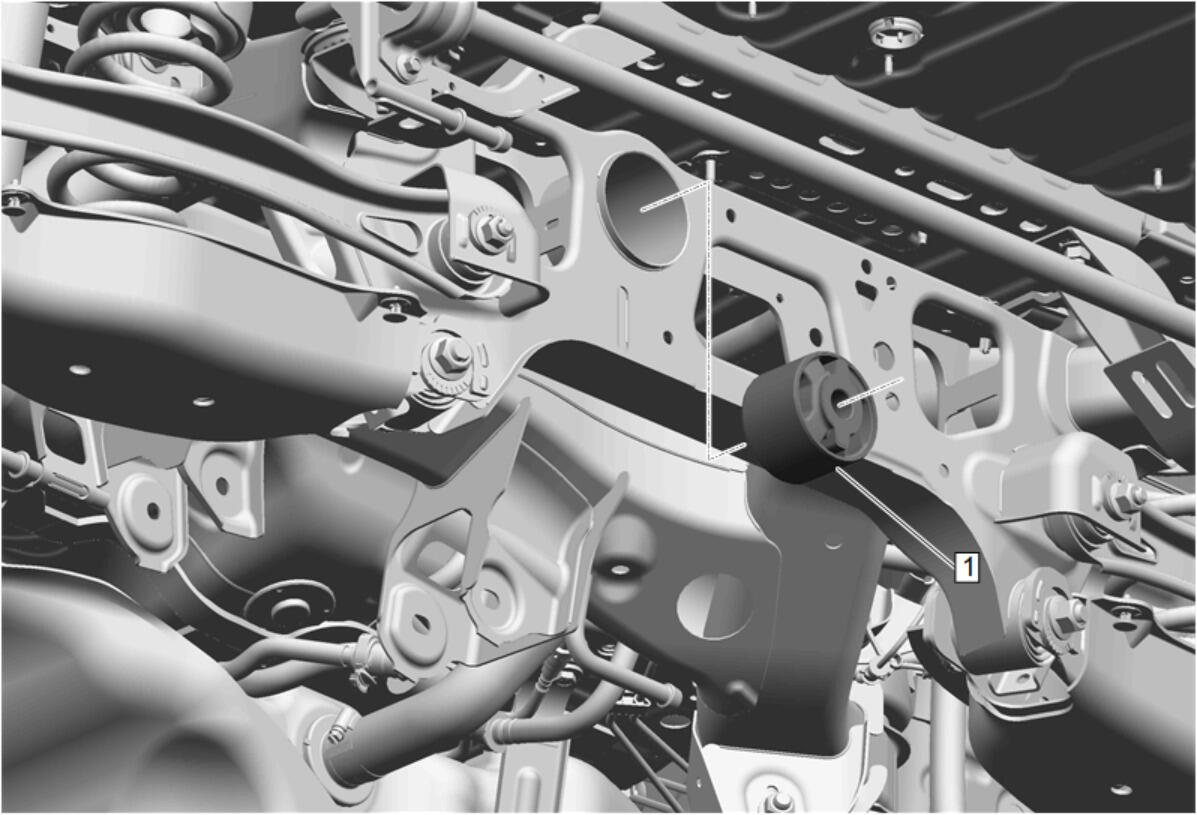

Callout	Component Name
Preliminary Procedure Raise the vehicle. Lifting and Jacking the Vehicle Differential Carrier Assembly - Remove Differential Carrier Assembly Replacement , or Differential Carrier Assembly Replacement (G96)
1	Differential Housing Support Bushing Rear Procedure Mark the orientation of the bushing in the rear cradle assembly on both sides of the cradle and on the new bushing. Measure the depth of the installed bushing prior to removal. Mark the new bushing keeping the same orientation. Using the DT-50806-5 installer and remover and DT-50806-3 installer and remover, remove and install the support bushing to the same orientation and depth. Special Tools DT-50806 Bushing Replacer Equivalent regional tools: Special Tools

Callout

Component Name

Preliminary Procedure

Raise the vehicle. Lifting and Jacking the Vehicle
Differential Carrier Assembly - Remove Differential Carrier Assembly Replacement , or Differential Carrier Assembly Replacement (G96)

Differential Housing Support Bushing Rear

Procedure

Mark the orientation of the bushing in the rear cradle assembly on both sides of the cradle and on the new bushing.
Measure the depth of the installed bushing prior to removal.
Mark the new bushing keeping the same orientation.
Using the DT-50806-5 installer and remover and DT-50806-3 installer and remover, remove and install the support bushing to the same orientation and depth.

Special Tools
DT-50806 Bushing Replacer
Equivalent regional tools: Special Tools
