Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Plenum Front Panel - Remove - Plenum Front Panel Replacement (with Blackwing)

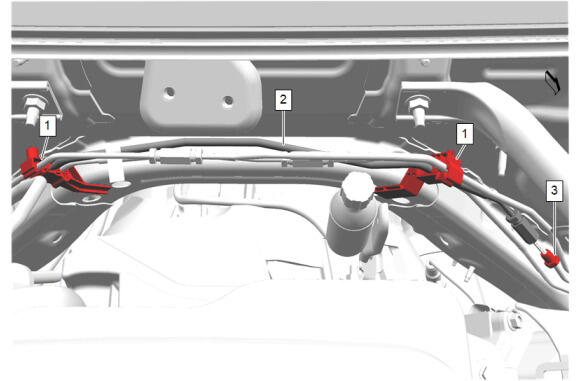

Rear Brake Pipe Nut (3) - Remove
- Rear Brake Pipe Clip (1) - Disengage [2x]
- Rear Brake Front Pipe - Left Side (2) @ Rear Brake Pipe Clip (1) - Remove [2x]
- Cap the left rear brake front pipe outlet to prevent brake fluid loss and contamination.
- Raise and support the vehicle. Lifting and Jacking the Vehicle
Warm Up Three-Way Catalytic Converter - Right Side (1) - Remove - Warm Up Three-Way Catalytic Converter Replacement - Right Side (LT4)
Exhaust Front Underbody Heat Shield- Right Side (3) - Remove - Exhaust Front Underbody Heat Shield Replacement - Right Side

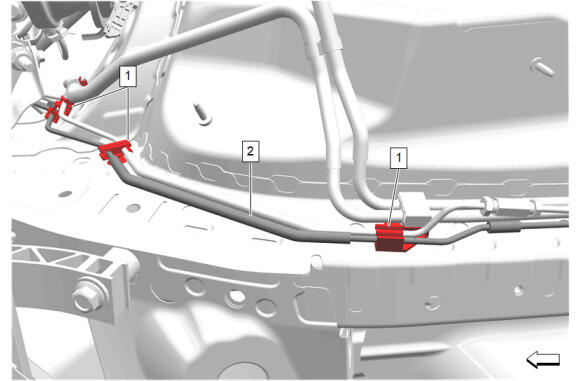

Rear Brake Front Pipe - Left Side (2) @ Rear Brake Pipe Clip (1) - Remove [3x]

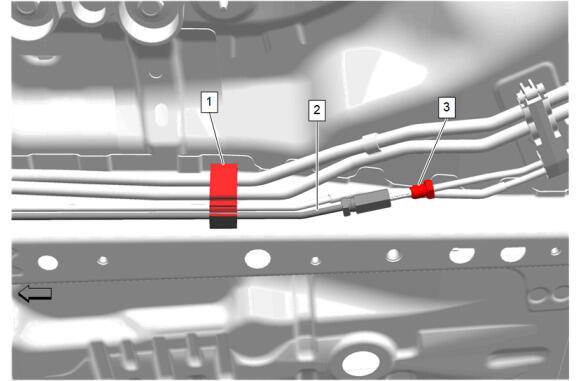

Rear Brake Pipe Nut (3) - Remove
- Rear Brake Front Pipe - Left Side (2) @ Rear Brake Pipe Clip (1) - Remove
- Maneuver the left rear brake front pipe (2) out of the vehicle
- Cap the left rear brake rear pipe inlet to prevent brake fluid loss and contamination.
