Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57)
- Engine Front Splash Shield - Remove - Engine Front Splash Shield Replacement (AWD) , or Engine Front Splash Shield Replacement (RWD)

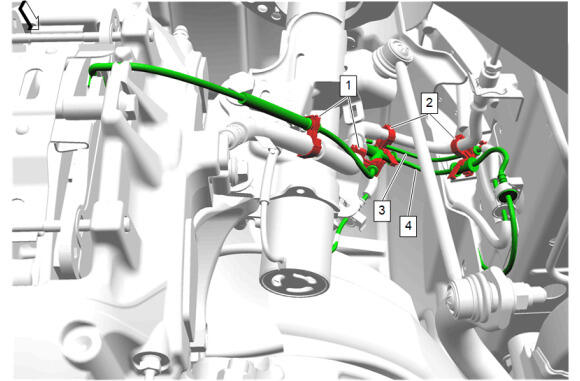

{If equipped} Wiring Harness Retainer (1) - Disengage [2x]
- Wiring Harness Retainer (2) - Disengage [2x]
- If equipped, remove the front disc brake pad wear sensor (4) at the 4 wiring harness retainers (1, 2).
- Remove the front wheel speed sensor (3) at the 2 wiring harness retainers (2).
Front Brake Hose Fitting Bolt (3) - Remove
- Front Brake Pipe Nut (1) - Remove
- Front Brake Hose Retainer (2) - Remove
- Cap the front brake pipe outlet to prevent brake fluid loss and contamination.

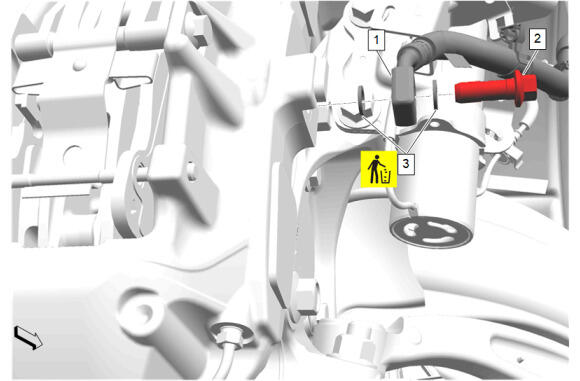

Front Brake Hose Fitting (2) - Remove
- Front Brake Hose Washer (3) - Remove and DISCARD [2x]
- Front Brake Hose (1) @ Front Brake Caliper - Remove
- Plug the front brake caliper inlet to prevent brake fluid loss and contamination.

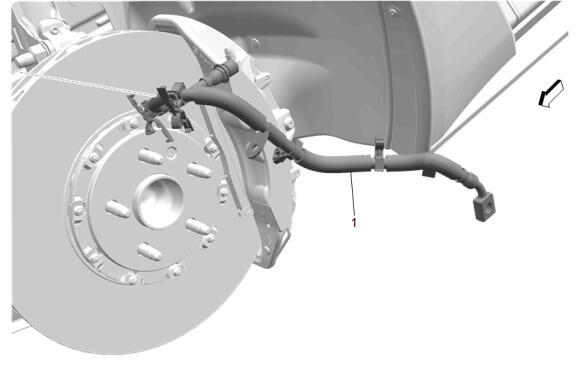

Front Brake Hose (1) - Remove
