Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

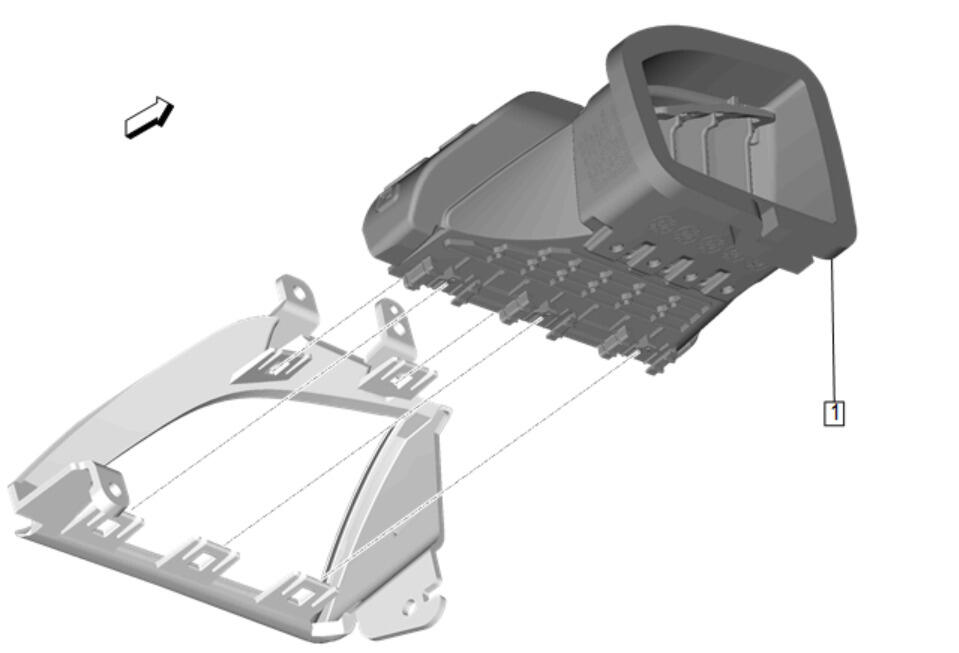

Instrument Panel Outer Air Outlet (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Trim Accent Molding (2) - Install - Trim Accent Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Upper Trim Panel - Left Side (3) - Install - Instrument Panel Upper Trim Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Instrument Cluster Hood (2) - Install - Instrument Panel Instrument Cluster Hood Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Cluster Trim Plate Applique (1) - Install - Instrument Panel Cluster Trim Plate Applique Replacement
Courtesy of GENERAL MOTORS COMPANY

Side Window Defogger Outlet Grille (2) - Install - Side Window Defogger Outlet Grille Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator - Left Side (1) - Install - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Airbag - Driver Side (2) - Install - Instrument Panel Lower Airbag Replacement - Driver Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Outer Trim Cover (1) - Install - Instrument Panel Outer Trim Cover Replacement
