Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Maneuver the instrument panel compartment air duct - Inner behind the Instrument panel.
Courtesy of GENERAL MOTORS COMPANY

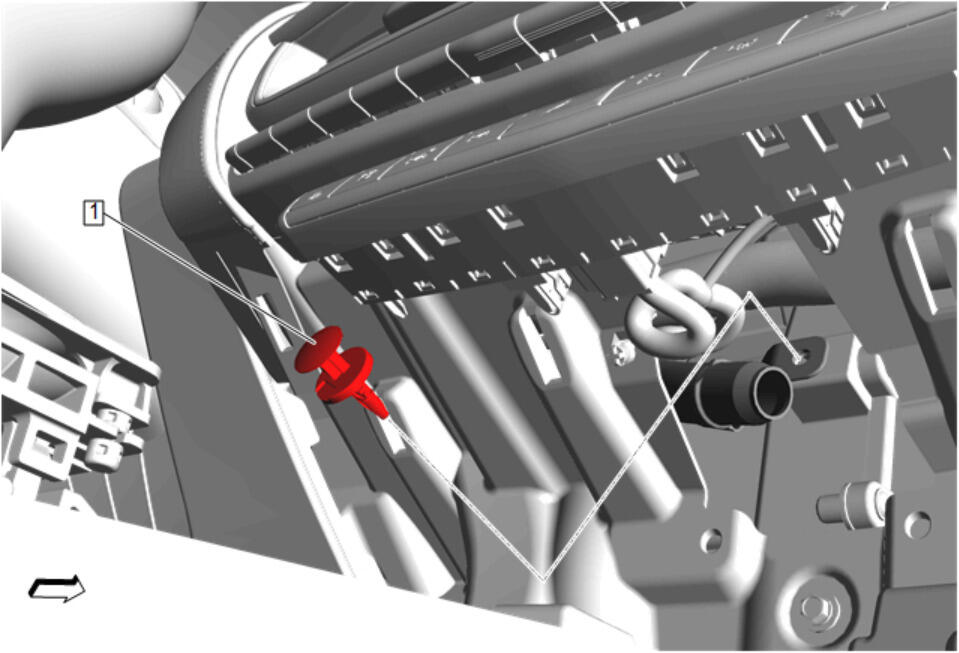

Instrument Panel Compartment Air Duct - Inner (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Floor Front Air Outlet Duct - Left Side - Inner (1) - Install - Floor Front Air Outlet Duct Replacement - Left Side Inner
Instrument Panel Knee Bolster Deflector - Install - Instrument Panel Knee Bolster Deflector Replacement
Courtesy of GENERAL MOTORS COMPANY

Floor Front Air Outlet Duct - Left Side - Outer (2) - Install - Floor Front Air Outlet Duct Replacement - Left Side Outer
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel Insulator - Left Side (1) - Install - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Airbag - Driver Side (2) - Install - Instrument Panel Lower Airbag Replacement - Driver Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Center Air Outlet Duct Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Compartment Air Duct (2) - Install - Instrument Panel Compartment Air Duct Replacement - Outer (K4C)
