Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

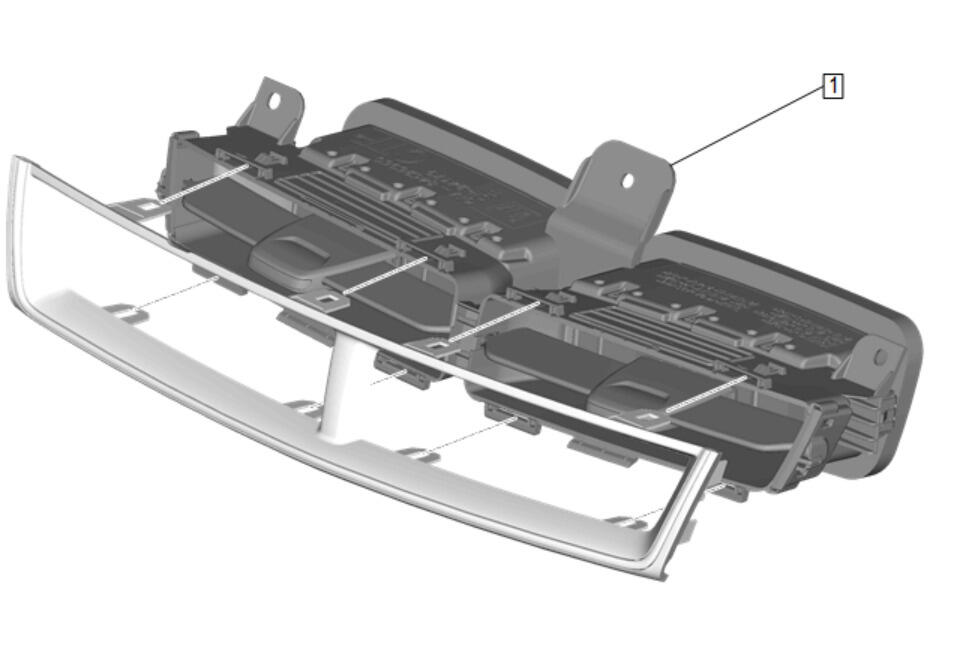

Install the instrument panel air outlet bezel to the instrument panel center air outlet (1).
Instrument Panel Center Air Outlet (2) - Install
- Instrument Panel Center Air Outlet Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)
Radio Control (2) - Install - Radio Control Replacement
Instrument Panel Center Trim Pad (2) - Install - Instrument Panel Center Trim Pad Replacement
Instrument Panel Instrument Cluster Hood (2) - Install - Instrument Panel Instrument Cluster Hood Replacement
Instrument Panel Cluster Trim Plate Applique (1) - Install - Instrument Panel Cluster Trim Plate Applique Replacement
CAUTION:
Refer to Fastener Caution .
