Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Radiator Surge Tank (2) - Remove - Radiator Surge Tank Replacement (LSY) , or Radiator Surge Tank Replacement (LGY) , or Radiator Surge Tank Replacement (LT4)

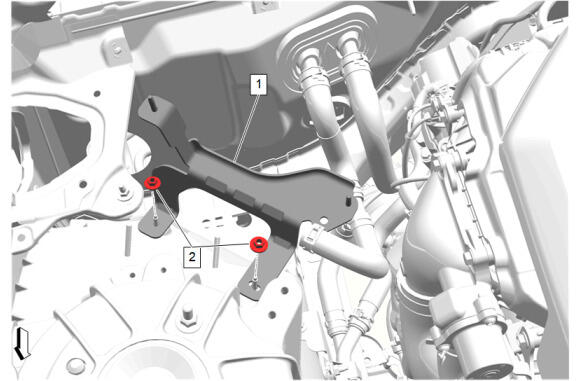

Radiator Surge Tank Bracket Nut (2) - Remove [2x]
- Radiator Surge Tank Bracket (1) - Remove

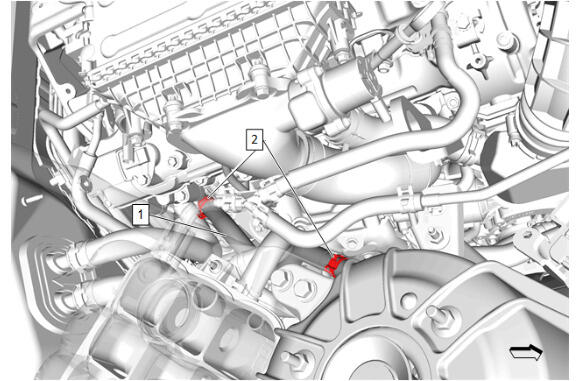

Heater Outlet Hose Clamp (2) - Disengage [2x] - Hose Clamp Replacement Guidelines - Spring Type
- Auxiliary Heater Outlet Hose (1) - Remove
