Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

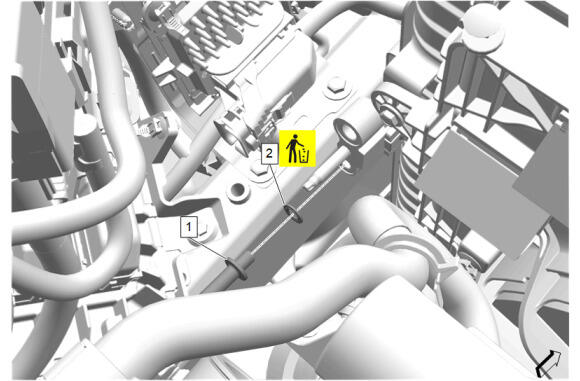

Air Conditioning Condenser Hose Seal (2) - Install NEW
- Air Conditioning Refrigerant Heat Exchanger (1) @ Air Conditioning Condenser - Install
Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (2) @ Air Conditioning Condenser - Install - Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose Replacement (LT4)

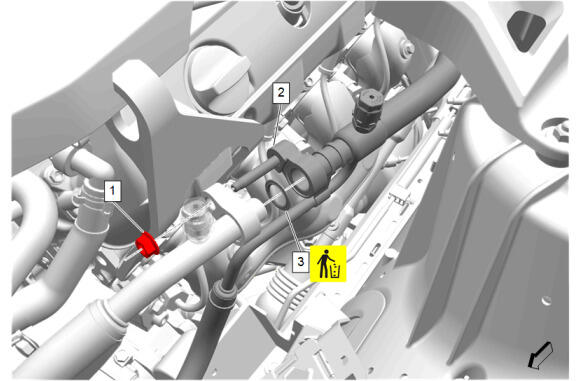

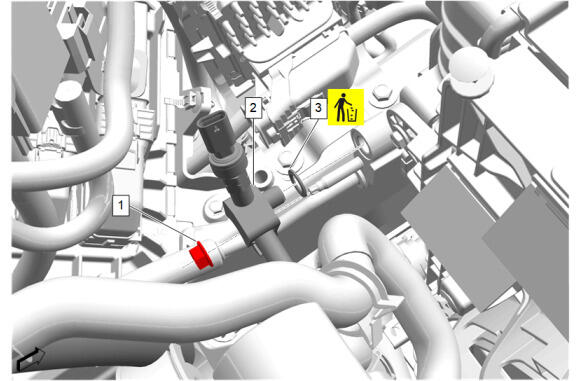

Air Conditioning Compressor Hose Seal (3) - Install NEW
- Air Conditioning Refrigerant Heat Exchanger (2) - Install
- Air Conditioning Compressor Hose Nut (1) - Install and tighten to 22 N.m (16 lb ft)

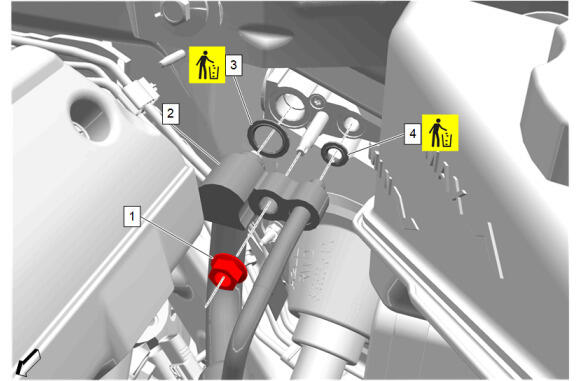

Air Conditioning Evaporator Inlet Tube Seal (4) - Install NEW
- Air Conditioning Evaporator Outlet Tube Seal (3) - Install NEW
- Air Conditioning Refrigerant Heat Exchanger (2) - Install
- Air Conditioning Evaporator Thermal Expansion Valve Hose Nut (1) - Install and tighten to 22 N.m (16 lb ft)
- Front End Sheet Metal Cross Brace - Left Side (3) - Install - Front End Sheet Metal Cross Brace Replacement (Impact Bar Bracket) , or Front End Sheet Metal Cross Brace Replacement (Plenum with Blackwing)

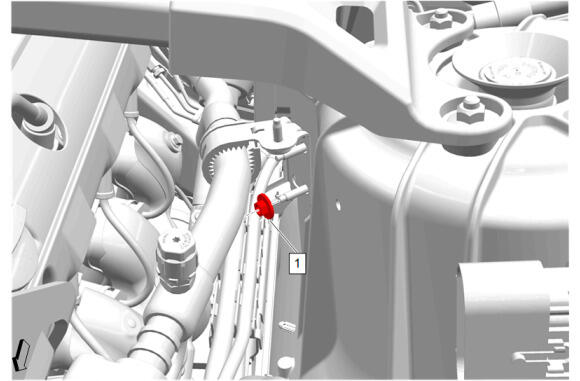

Air Conditioning Evaporator Hose Clip Nut (1) - Install and tighten to 9 N.m (80 lb in)
- NOTE:
Some components not shown for graphic clarity.
Fasten the auxiliary generator battery jumper cable (2) onto the lower air conditioning refrigerant heat exchanger bracket stud.
- Fasten the engine harness (1) onto the air conditioning refrigerant heat exchanger bracket.
- Recharge the refrigerant. Refrigerant Recovery and Recharging
- Inspect for refrigerant leaks.
CAUTION:
Refer to Fastener Caution .
