Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Air Conditioning Sealing Washer (2) - Install NEW [2x]
- Maneuver the air conditioning refrigerant heat exchanger (1) back into the engine compartment.
Wiring Harness Retainer (2) - Install [2x]

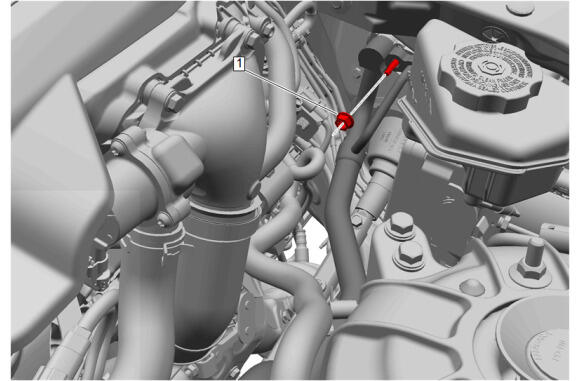

- Air Conditioning Evaporator Hose Clip Nut (1) - Install and tighten to 9 N.m (80 lb in)
Air Conditioning Evaporator Thermal Expansion Valve Hose Nut (1) - Install and tighten to 22 N.m (16 lb ft)

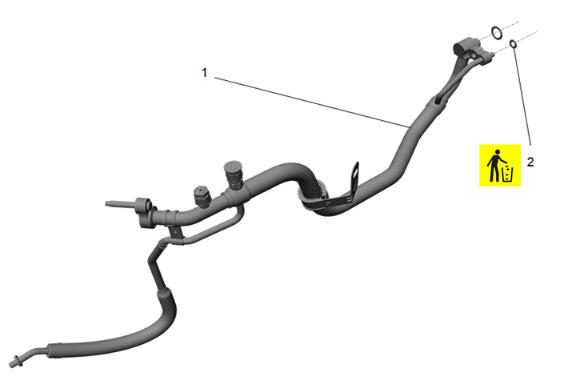

Air Conditioning Sealing Washer (2) - Install NEW
- Air Conditioning Refrigerant Heat Exchanger (1) - Install

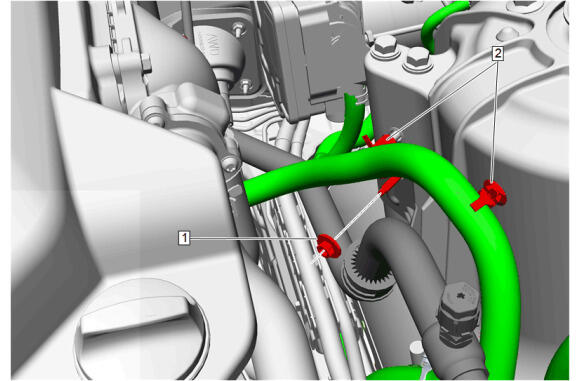

Air Conditioning Sealing Washer (3) - Install NEW
- Air Conditioning Compressor Hose (2) - Install
- Air Conditioning Condenser Hose Nut (1) - Install and tighten to 22 N.m (16 lb ft)

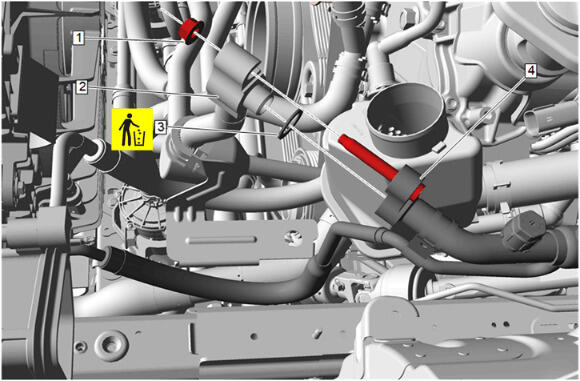

Air Conditioning Sealing Washer (3) - Install NEW
- Air Conditioning Refrigerant Heat Exchanger (2) @ Air Conditioning Evaporator Hose (4) - Install
- Air Conditioning Compressor Hose Nut (1) - Install and tighten to 22 N.m (16 lb ft)

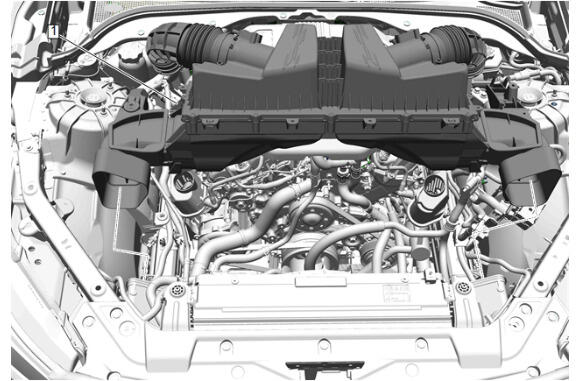

Air Cleaner Assembly (1) - Install - Air Cleaner Assembly Replacement
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
- Recharge the refrigerant. Refrigerant Recovery and Recharging
- Inspect for refrigerant leaks. Leak Testing
CAUTION:
Refer to Fastener Caution .
