Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

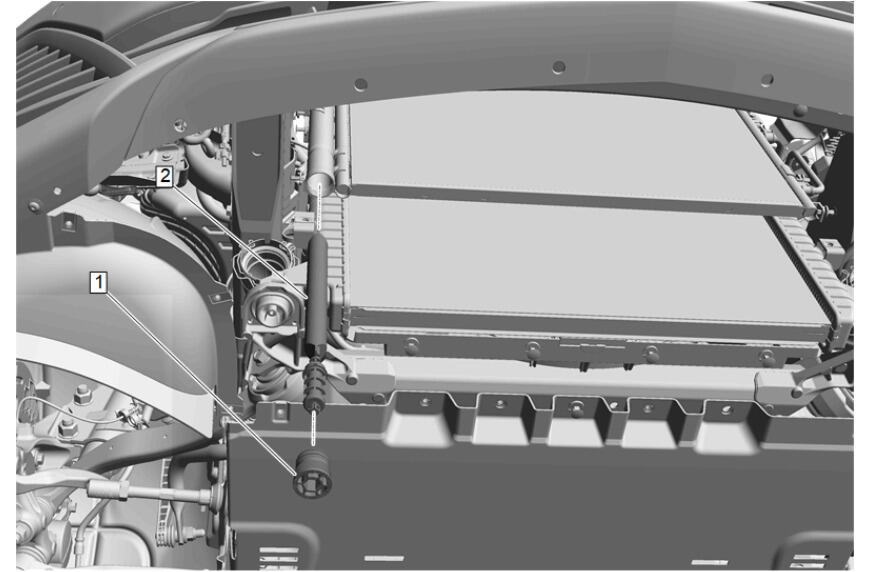

Air Conditioning Refrigerant Desiccant (2) - Install
- Air Conditioning Receiver and Dehydrator Plug (1) - Install and tighten to 7.0 N.m (62 lb in)
- NOTE:
Some components not shown for graphic clarity.
Charge Air Cooler (2) - Install - Charge Air Cooler Replacement
- Recharge the refrigerant. Refrigerant Recovery and Recharging
CAUTION:
Refer to Fastener Caution .
