Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- CAUTION:
Refer to Component Fastener Tightening Caution .

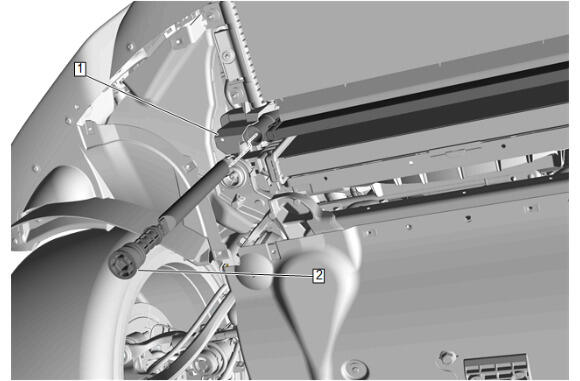

Air Conditioning Receiver and Dehydrator (2) - Install and tighten to 12 N.m (106 lb in)
- Return the radiator air side baffle (1) back to its original position.

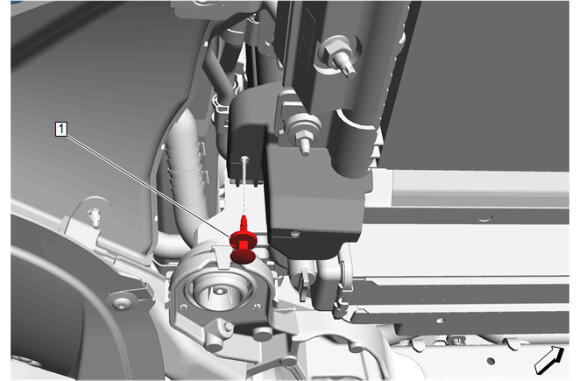

Radiator Air Side Baffle Retainer (1) - Install
Radiator Air Lower Baffle (2) - Install
- Radiator Air Lower Baffle Retainer (1) - Install [6x]
Front Bumper Fascia Center Air Deflector (1) - Install - Front Bumper Fascia Center Air Deflector Replacement
- Lower the vehicle.
