Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Recover the refrigerant. Refrigerant Recovery and Recharging
- Front End Sheet Metal Cross Brace - Left Side (3) - Remove - Front End Sheet Metal Cross Brace Replacement (Impact Bar Bracket) , or Front End Sheet Metal Cross Brace Replacement (Plenum without Blackwing) , or Front End Sheet Metal Cross Brace Replacement (Plenum with Blackwing)
Air Conditioning Refrigerant Heat Exchanger (1) @ Air Conditioning Evaporator Thermal Expansion Valve - Remove - Air Conditioning Refrigerant Heat Exchanger Replacement (LSY) , or Air Conditioning Refrigerant Heat Exchanger Replacement (LT4)

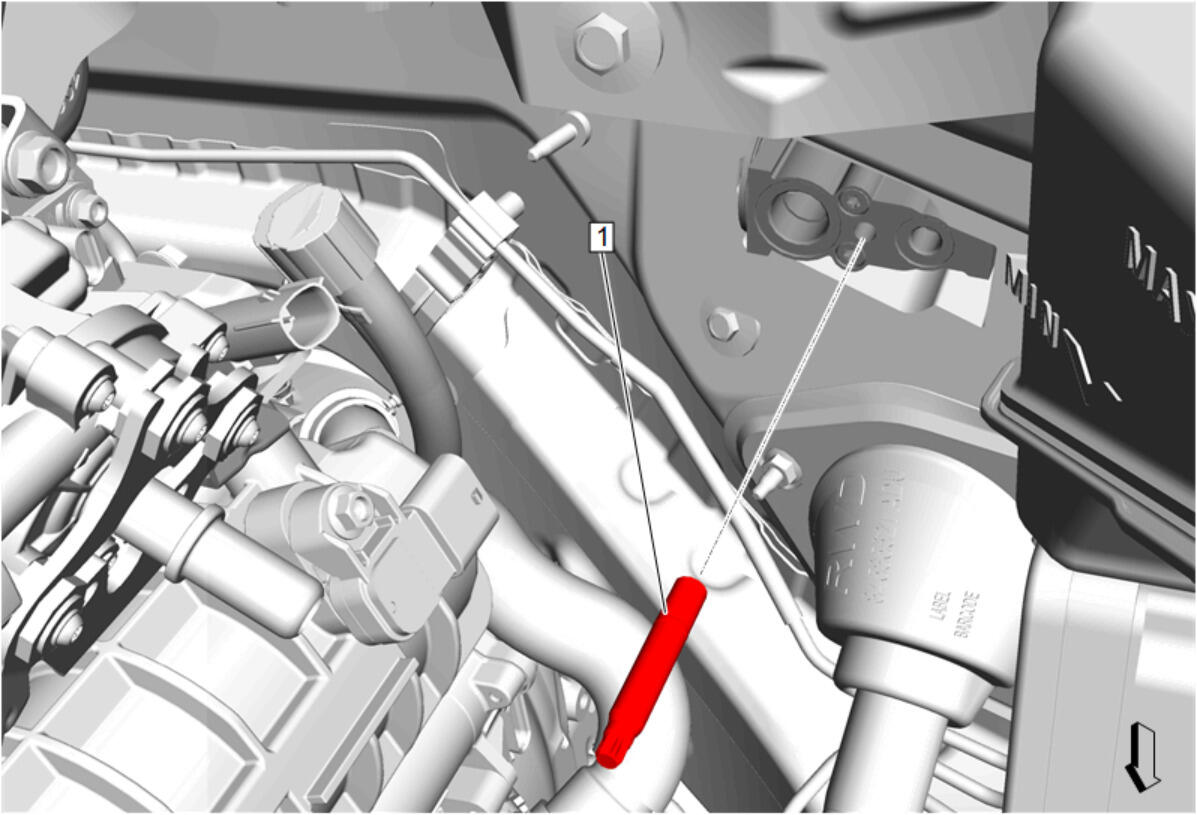

Air Conditioning Evaporator Thermal Expansion Valve Stud (1) - Remove

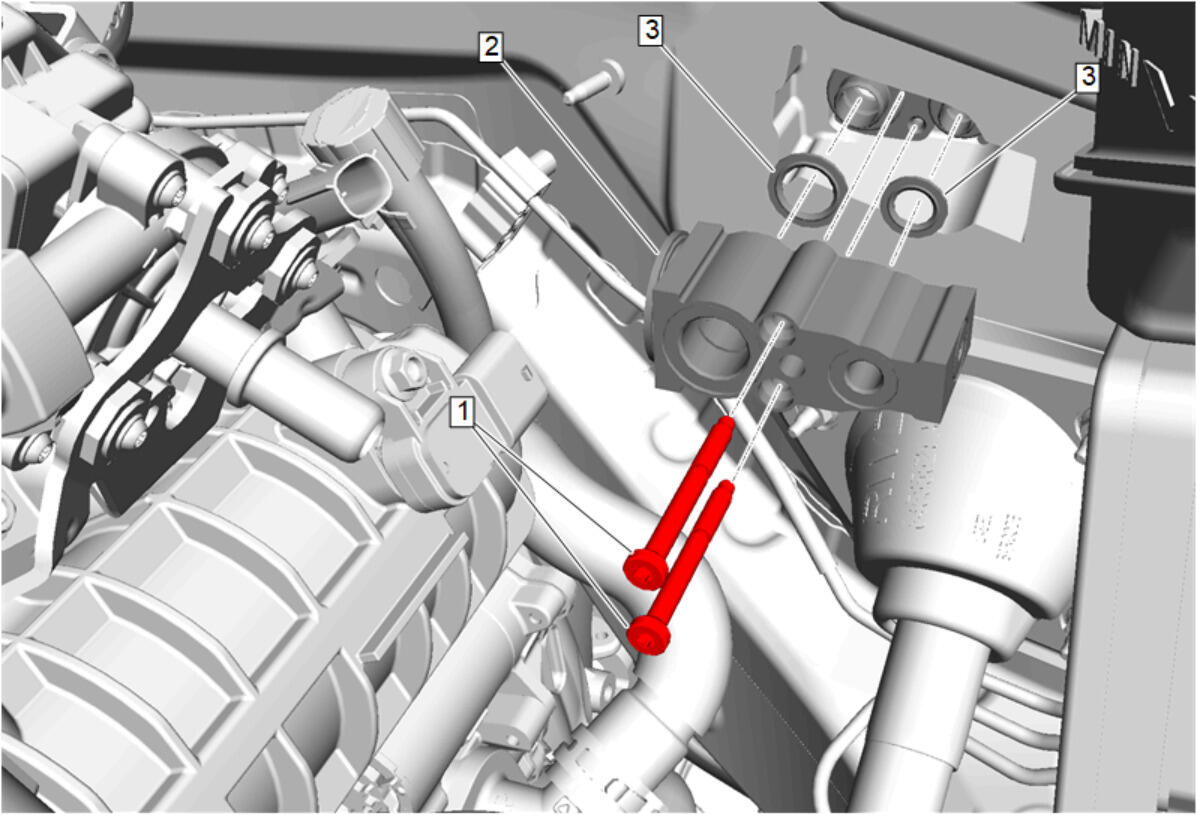

Air Conditioning Evaporator Thermal Expansion Valve Bolt (1) - Remove [2x]
- Air Conditioning Evaporator Thermal Expansion Valve (2) - Remove
- Air Conditioning Sealing Washer (3) - Remove and DISCARD [2x]
