Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Accelerator Pedal (3) - Remove - Accelerator Pedal Replacement
Front Floor Console Extension Panel - Left Side (1) - Remove - Front Floor Console Extension Panel Replacement - Left Side , or Front Floor Console Extension Panel Replacement - Left Side (Blackwing)
- Pull the carpet back and reposition the floor rear air outlet duct to gain access to the air conditioning evaporator case drain tube.

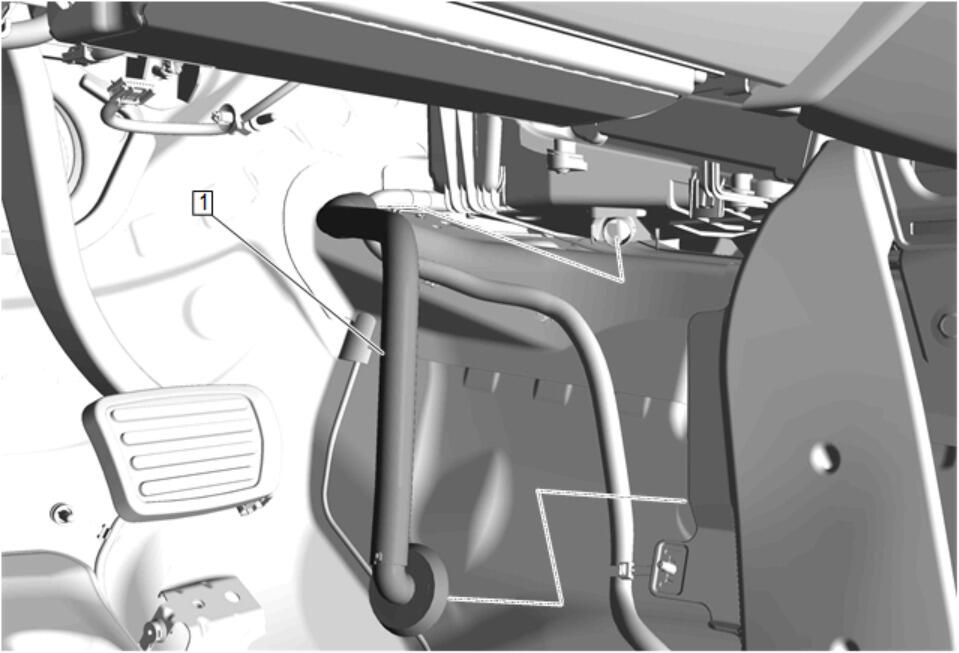

Air Conditioning Evaporator Case Drain Tube (1) - Remove
