Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant. Refrigerant Recovery and Recharging
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Refrigerant Heat Exchanger (2) @ Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose - Remove - Air Conditioning Refrigerant Heat Exchanger Replacement (LT4)
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connector.
Air Conditioning Compressor Hose Nut (1) - Remove
Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (2) - Remove
Air Conditioning Compressor Hose Seal (3) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

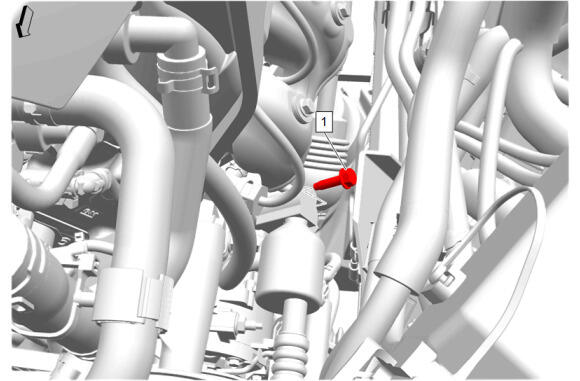

Air Conditioning Compressor Hose Bolt (1) @ Air Conditioning Compressor - Remove
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (1) - Remove
Air Conditioning Compressor and Condenser Hose Seal (2) - Remove and DISCARD
Air Conditioning Compressor Hose Seal (3) - Remove and DISCARD
