Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant. Refrigerant Recovery and Recharging
Front Compartment Front Sight Shield - Remove - Front Compartment Front Sight Shield Replacement
Courtesy of GENERAL MOTORS COMPANY

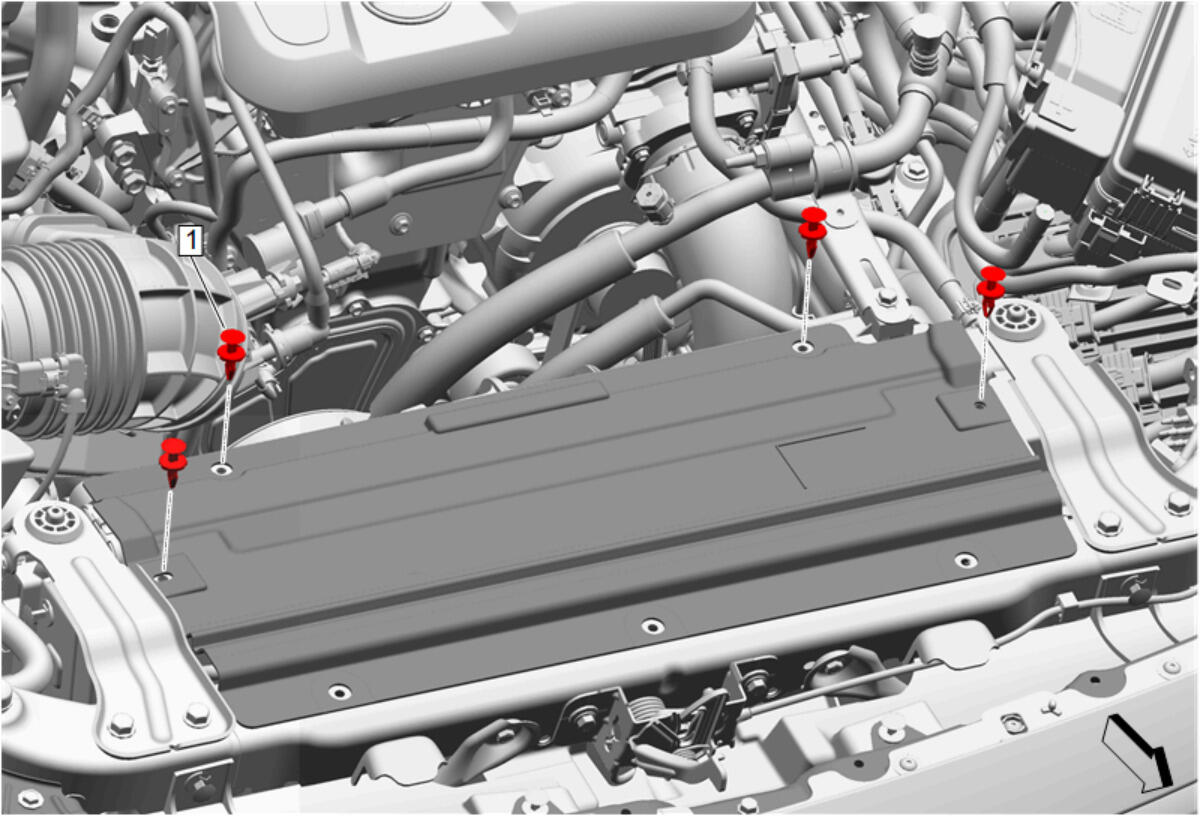

Radiator Air Upper Baffle Retainer (1) - Remove [4x]
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Upper Baffle (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Remove
Radiator Upper Bracket Bolt (2) - Remove [2x]
Radiator Upper Bracket - Right Side (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

Radiator Upper Bracket Bolt (1) - Remove [2x]
Radiator Upper Bracket - Left Side (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor Hose Nut (1) @ Air Conditioning Condenser - Remove
Air Conditioning Condenser Tube Clip (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (1) @ Air Conditioning Condenser - Remove
Air Conditioning Sealing Washer (2) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Refrigerant Heat Exchanger (1) @ Air Conditioning Condenser - Remove
Air Conditioning Sealing Washer (2) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

Radiator Air Seal Retainer (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser Tube Bolt (1) - Remove
Radiator Air Seal Retainer (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser Bracket Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Lift the air conditioning condenser (1) up and out of engine compartment by tilting the left and right side radiator air side baffles outward, maneuvering condenser past the baffles.
