Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

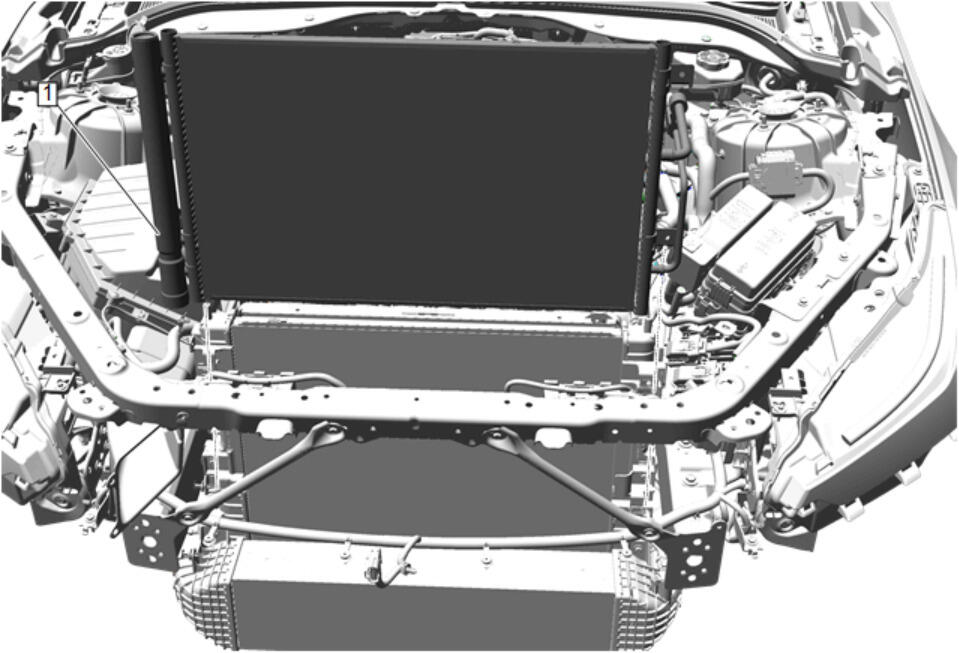

  1. GM5322899Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Condenser (1) - Remove - Air Conditioning Condenser Replacement (LSY) , or Air Conditioning Condenser Replacement (LGY) , or Air Conditioning Condenser Replacement (LT4)

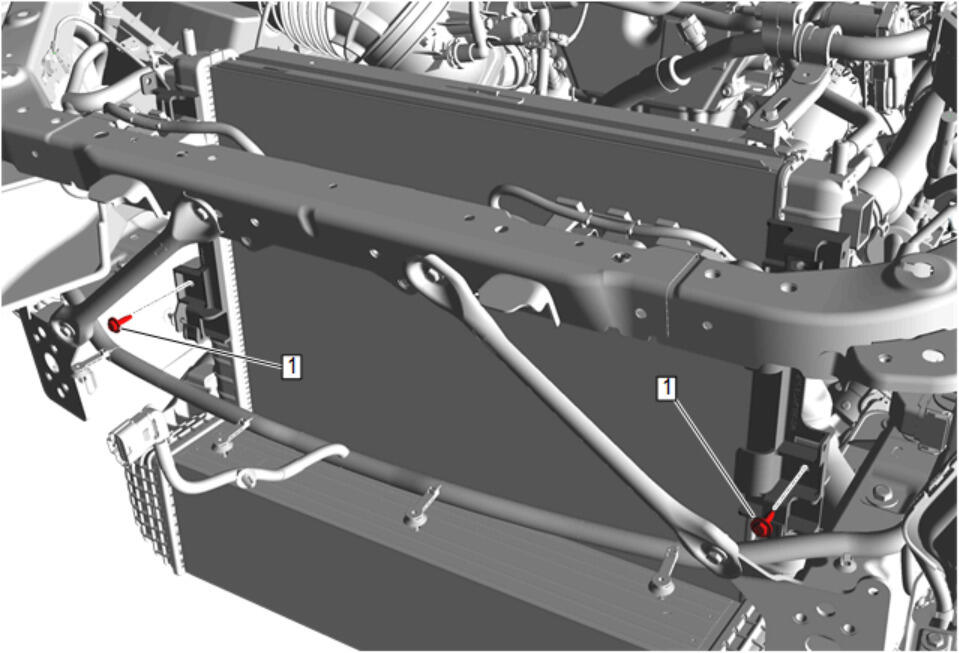

  2. GM5322929Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Condenser Bracket Bolt (1) - Remove [2x]

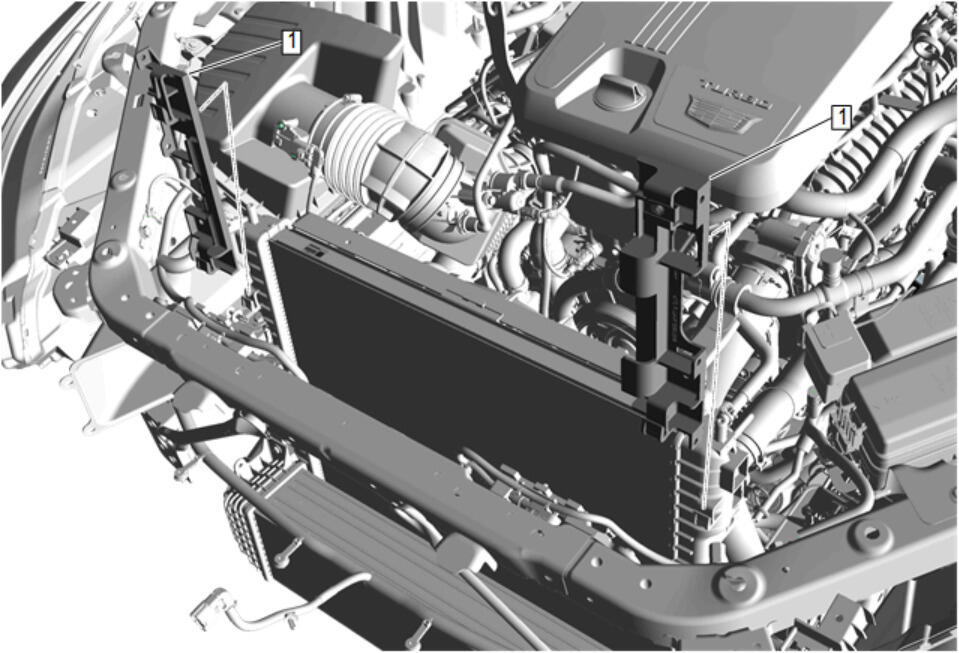

  3. GM5322909Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Condenser Bracket (1) - Remove [2x]
