Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Recover the refrigerant. Refrigerant Recovery and Recharging

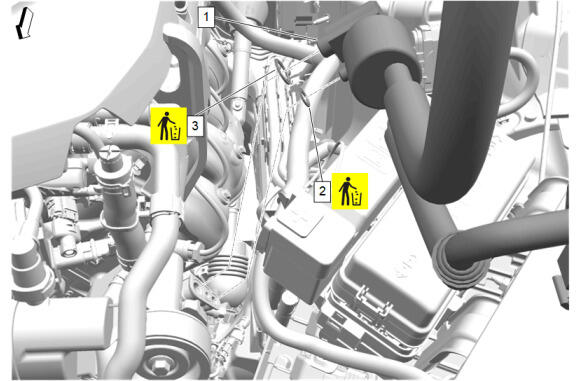

Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose (2) @ Air Conditioning Condenser - Remove - Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose Replacement (LT4)
Air Conditioning Refrigerant Heat Exchanger (1) @ Air Conditioning Condenser - Remove - Air Conditioning Refrigerant Heat Exchanger Replacement (LT4)
Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose @ Air Conditioning Compressor (1) - Remove and position aside - Air Conditioning Evaporative Connector Hose/Tube and Compressor Hose Replacement (LT4)

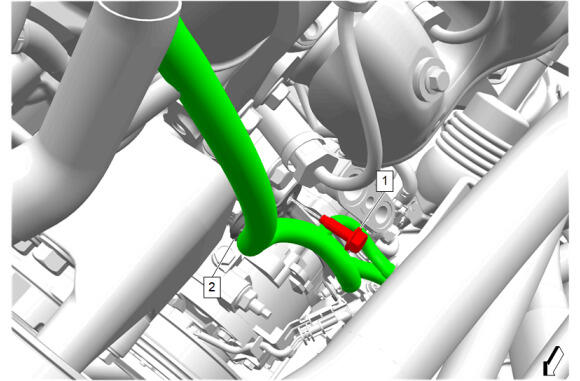

Engine Wiring Harness Bolt (1) - Remove
- Engine and Transmission Wiring Harness Bracket (2) - Position aside
- Supercharger Belt Tensioner Bracket - Remove - Supercharger Belt Tensioner Bracket Replacement
- Air Conditioning Compressor Belt - Remove - Air Conditioning Compressor Belt Replacement

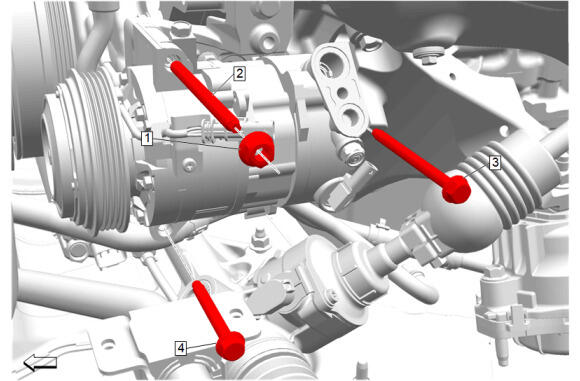

Air Conditioning Compressor Nut (1) - Remove
- Air Conditioning Compressor Stud (2) - Remove
- Air Conditioning Compressor Bolt (3) - Remove
- Air Conditioning Compressor Bolt (4) - Remove

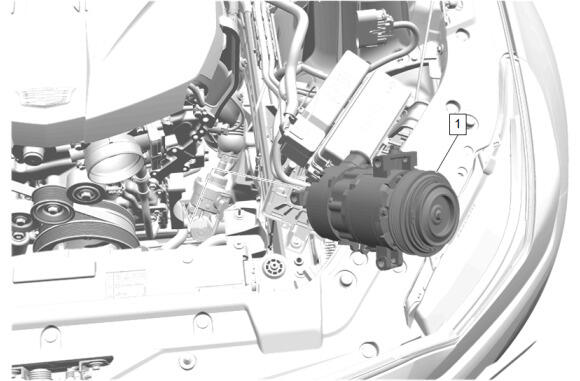

Air Conditioning Compressor (1) - Remove
