Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

It is necessary to perform the air conditioning compressor oil balance procedure when replacing the air conditioning compressor. Air Conditioning Compressor Oil Balancing
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

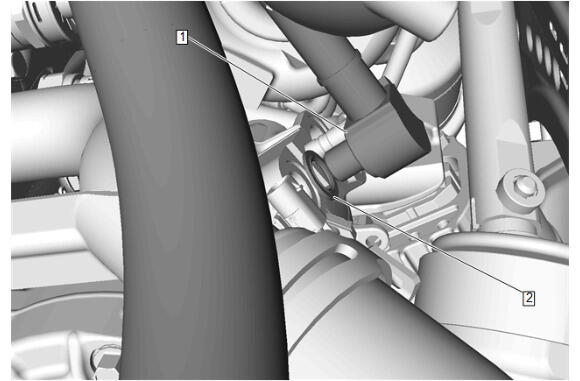

Air Conditioning Compressor (2) - Install
Connect the electrical connectors.

CAUTION:

Refer to Fastener Caution .

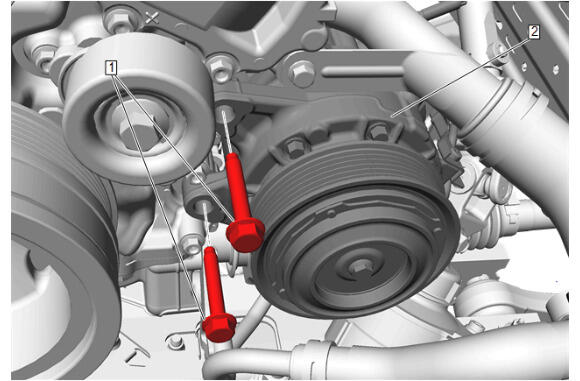

Air Conditioning Compressor Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Radiator Outlet Pipe (1) - Move into position - Radiator Outlet Pipe Replacement (RWD with LGY) , or Radiator Outlet Pipe Replacement (AWD with LGY)
Courtesy of GENERAL MOTORS COMPANY

Intermediate Steering Shaft (1) - Reposition away - Intermediate Steering Shaft Replacement (AWD) , or Intermediate Steering Shaft Replacement (RWD)
Courtesy of GENERAL MOTORS COMPANY

Accessory Drive Primary Belt (1) @ Air Conditioning Compressor - Install - Accessory Drive Primary Belt Replacement
Courtesy of GENERAL MOTORS COMPANY

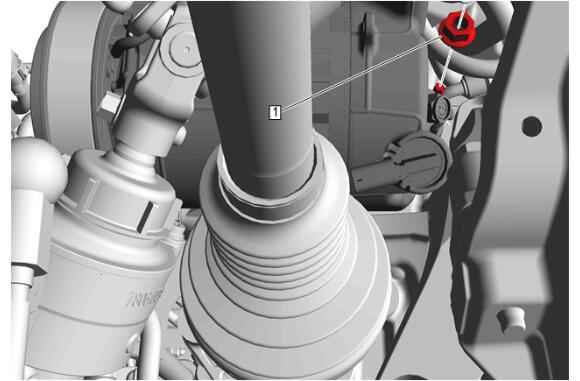

Air Conditioning Compressor Nut (1) - Install and tighten to 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Engine Front Splash Shield (3) - Install
Retainer (2) - Install

NOTE:

Refer to the procedure link for torque specification.

Engine Front Splash Shield Bolt (1) - Install and tighten [5x] - Engine Front Splash Shield Replacement (AWD) , or Engine Front Splash Shield Replacement (RWD)
Install the left front tire and wheel. Tire and Wheel Removal and Installation (without J57) , or Tire and Wheel Removal and Installation (with J57)
Remove the support and lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
New Air Conditioning sealing washers should never be exposed to any type of oil or lubricant, the rubber material may absorb the oil causing failures during installation or the life of the vehicle.

Air Conditioning Compressor Hose Seal (2) - Install NEW
Air Conditioning Compressor Hose (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor and Condenser Hose Nut (1) - Install and tighten - Air Conditioning Compressor Hose Replacement
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor Hose Seal (2) - Install NEW
Air Conditioning Evaporator Hose (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Refer to the procedure link for torque specification.

Air Conditioning Compressor Hose Bolt (1) - Install and tighten - Air Conditioning Evaporator Hose Replacement
Courtesy of GENERAL MOTORS COMPANY

Turbocharger Air Inlet Adapter (2) - Install - Turbocharger Air Inlet Adapter Replacement - Bank 2
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Resonator-Left Side (2) - Install
Positive Crankcase Ventilation Tube (1) - Connect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

Retaining Clip (4) - Install
Positive Crankcase Ventilation Tube (3) - Connect - Plastic Collar Quick Connect Fitting Service
Charge Air Bypass Valve Hose (2) - Install
Charge Air Bypass Valve Hose Clamp (1) - Install - Hose Clamp Replacement Guidelines - Spring Type

NOTE:

Refer to the procedure link for torque specification.

Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Recharge the refrigerant. Refrigerant Recovery and Recharging
Inspect for refrigerant leaks.
