Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

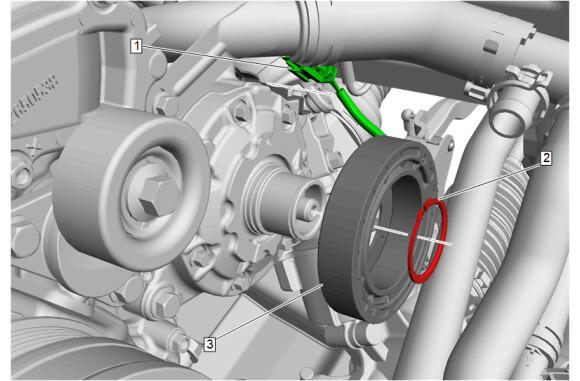

Air Conditioning Compressor Clutch Coil (3) - Install
Air Conditioning Clutch Coil Retaining Ring (2) - Install
Install the electrical harness into the air conditioning compressor bracket and connect the electrical connector (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

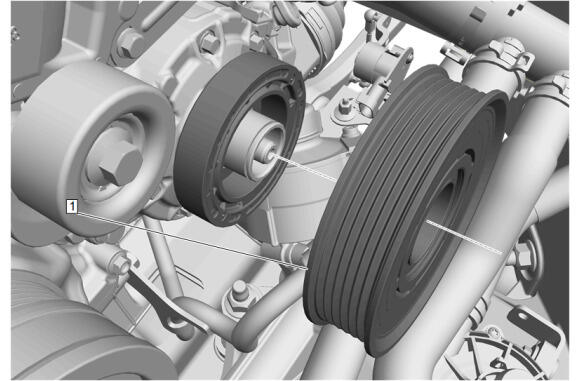

Air Conditioning Compressor Clutch Pulley (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

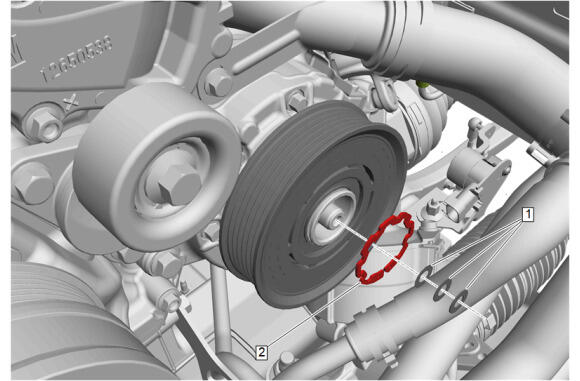

Air Conditioning Compressor Pulley Bearing Retaining Ring (2) - Install

NOTE:

Use the original shim count as a starting point to determine the proper air gap for the air conditioning clutch plate.

Air Conditioning Clutch Shim(s) (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

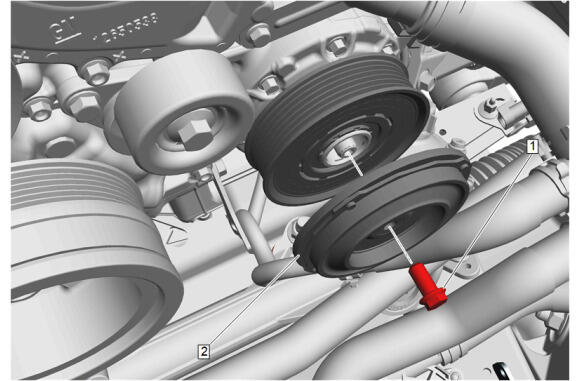

Air Conditioning Compressor Clutch Drive Plate (2) - Install
Air Conditioning Compressor Clutch Pulley Bolt (1) - Install and hand tighten
Adjust the air conditioning clutch drive plate air gap. Air Conditioning Clutch Drive Plate Adjustment (LT4)

CAUTION:

Refer to Fastener Caution .

Air Conditioning Compressor Clutch Pulley Bolt (1) - Tighten to 18 N.m (13 lb ft)
Air Conditioning Compressor Belt - Install - Air Conditioning Compressor Belt Replacement
Courtesy of GENERAL MOTORS COMPANY

Supercharger Belt Tensioner Bracket (3) - Install - Supercharger Belt Tensioner Bracket Replacement
