Transmission Case 1 of 3
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

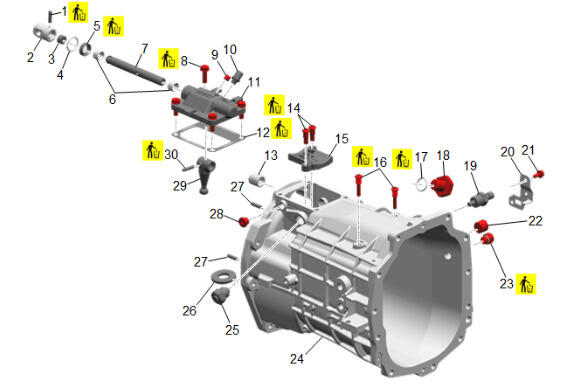

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Selector Lever Pivot Pin |
| 2 | Manual Transmission Shift Lever Rod |
| 3 | Manual Transmission Control Lever Seal |
| 4 | Manual Transmission Selector Lever Retaining Ring |
| 5 | Shift Control Shaft Cover Seal |
| 6 | Shift Shaft Bushing [2x] |
| 7 | Shift Shaft |
| 8 | Shift Control Shaft Cover Bolt [4x] |
| 9 | Shift Control Shaft Cover Bolt |
| 10 | Transmission Vent Pipe |
| 11 | Shift Control Shaft Cover |
| 12 | Shift Control Shaft Cover Seal |
| 13 | Shift Shaft Detent Bushing |
| 14 | Shift Guide Detent Plate Bolt [2x] |
| 15 | Shift Guide Detent Plate |
| 16 | Shift Shaft Interlock Pin [2x] |
| 17 | Manual Transmission Reverse Gear Blockout Solenoid Seal |
| 18 | Manual Transmission Case Hole Plug |
| 19 | Manual Transmission Fluid Temperature Sensor |
| 20 | Transmission Fluid Auxiliary Cooler Pipe Bracket |
| 21 | Transmission Fluid Auxiliary Cooler Pipe Bracket Bolt |
| 22 | Transmission Oil Filler Plug |
| 23 | Transmission Fluid Cooler Inlet Pipe Fitting |
| 24 | Transmission Case |
| 25 | Shift Interlock Detent |
| 26 | Transmission Magnet |
| 27 | Transmission Case Locating Pin [2x] |
| 28 | Manual Transmission Case Hole Plug |
| 29 | Shift Control Lever |
| 30 | Shift Control Lever Shaft Pin |
