Transmission Case
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Transmission Fluid Cooler Outlet Pipe Fitting (1) - Remove and DISCARD
- Transmission Oil Filler Plug (2) - Remove
- Manual Transmission Fluid Temperature Sensor (3) - Remove
Manual Transmission Case Hole Plug (2) - Remove
- Manual Transmission Reverse Gear Blockout Solenoid Seal. (1) - Remove and DISCARD

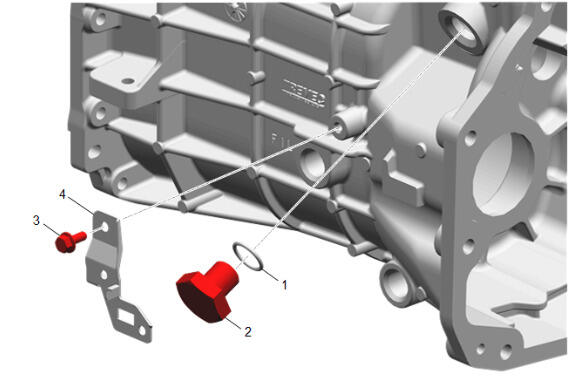

- Transmission Fluid Auxiliary Cooler Pipe Bracket Bolt (3) - Remove
- Transmission Fluid Auxiliary Cooler Pipe Bracket (4) - Remove
Transmission Case Locating Pin (1) - Remove [2x]
- Transmission Magnet (2) - Remove
- NOTE:
Do not replace the bearing race unless inspection shows bearing race damage.
Use the DT-8092 Drive Handle (1) and the J-39790-A Mainshaft Bearing Race Remover (2) to remove the countershaft bearing race (3).
- NOTE:
Do not replace the bearing race unless inspection shows bearing race damage.
Use the DT-8092 Drive Handle (1) and the J-39790-A Mainshaft Bearing Race Remover (2) to remove the mainshaft bearing race (3).
Use the J-36190 Universal Driver Handle (1) and the J-44384 Shift Fork Bearing Installer (2) to remove the 1st and 2nd and the 3rd and 4th shift shaft bearing (3).
