Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Extend the steering column to its furthest point to allow the instrument panel steering column upper trim cover to clear the instrument panel.
Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover.
- Instrument Panel Steering Column Upper Trim Cover (1) - Reposition
Turn the steering wheel approximately 90 degrees to the left of the centered position.
- Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove
Turn the steering wheel approximately 90 degrees to the right of the centered position.
- Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove
Turn the steering wheel to the centered position.
- Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Remove
- Disconnect the electrical connector.
- Instrument Panel Steering Column Lower Trim Cover (2) - Remove

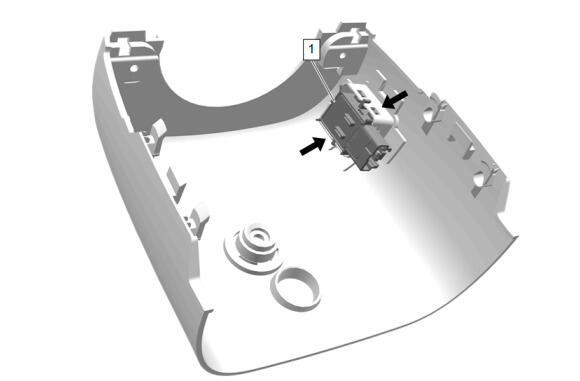

Release the retaining tabs and remove the steering column tilt wheel and telescope switch (1) from the instrument panel steering column lower trim cover.
