Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Steering Column - Remove - Steering Column Removal and Installation (with N37) , or Steering Column Removal and Installation (with N38)

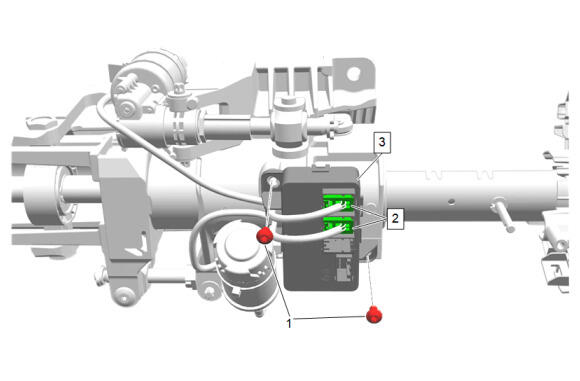

  2. GM5861059Courtesy of GENERAL MOTORS COMPANY

    Steering Column Control Module Bracket Bolt (1) - Remove [2x]

  3. Disconnect the electrical connectors. (2)
  4. Steering Column Tilt Wheel and Telescope Control Module (3) - Remove
