Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Mid Intermediate Steering Shaft (1) - Install

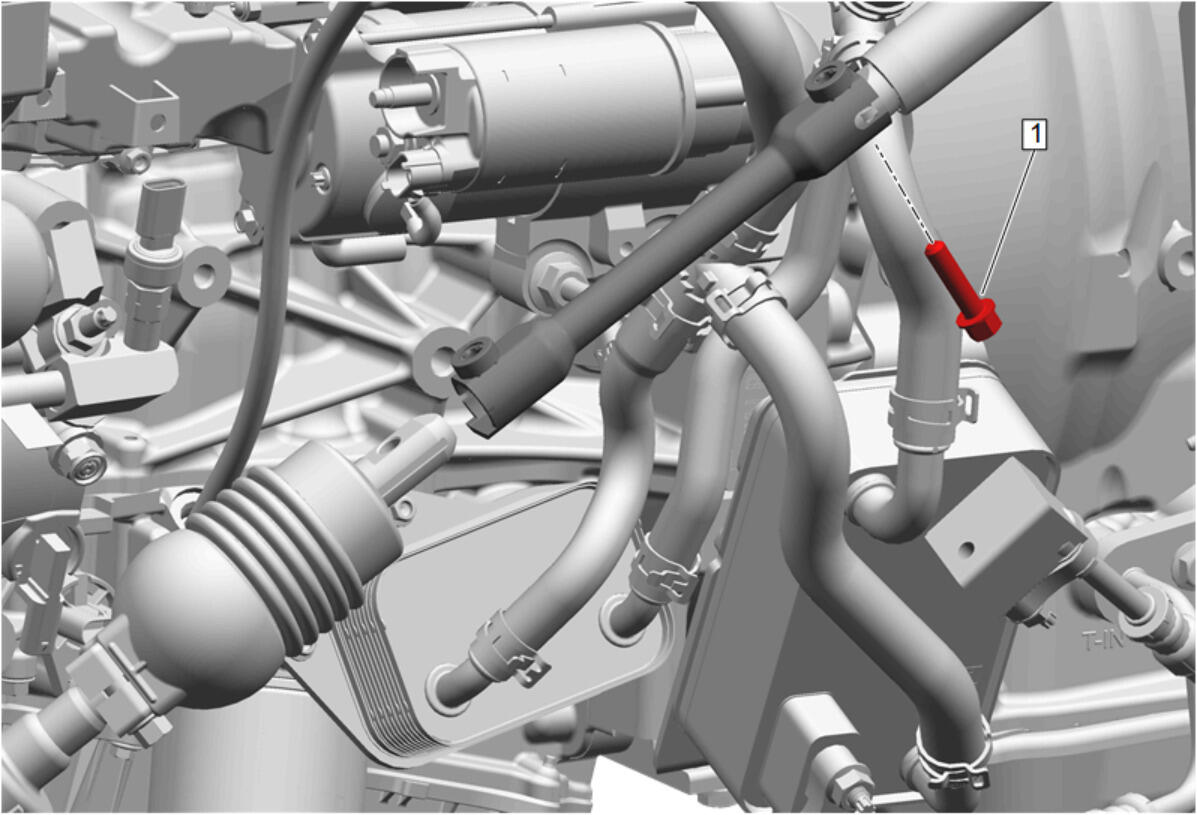

Prepare the mid intermediate steering shaft bolt (1) as follows:
- Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
- Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Mid Intermediate Steering Shaft Bolt (1) - Install and tighten - Fastener Specifications
Install the mid intermediate steering shaft to the intermediate steering shaft by sliding the upper portion of the intermediate shaft (1) upward.
- Prepare the mid intermediate steering shaft bolt (2) as follows:
- Remove any loose cured adhesive from the external threads of the component using a lint free cloth.
- Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the component. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Mid Intermediate Steering Shaft Bolt (2) - Install and tighten - Fastener Specifications
- Remove the device used to prevent steering column rotation.
CAUTION:
Refer to Fastener Caution .
