Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Secure the steering wheel so it will not turn when the mid intermediate steering shaft is disconnected.
- Raise and support the vehicle. Lifting and Jacking the Vehicle

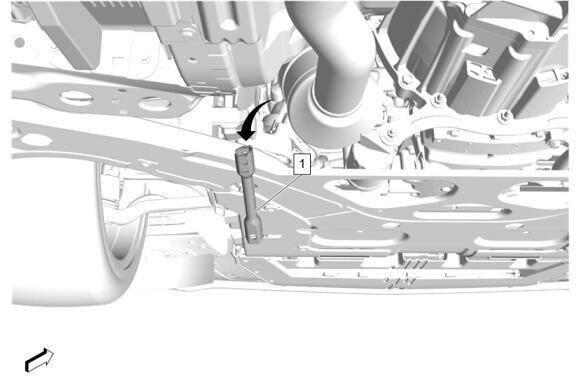

Mid Intermediate Steering Shaft Bolt (1) - Remove
- Separate the mid intermediate steering shaft from the intermediate steering shaft by pushing the upper portion of the intermediate shaft (2) downward.
Mid Intermediate Steering Shaft Bolt (1) - Remove
Mid Intermediate Steering Shaft (1) - Remove
