Special Tools

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

GE-8433 Puller Bar

Equivalent regional tools: Special Tools

Courtesy of GENERAL MOTORS COMPANY

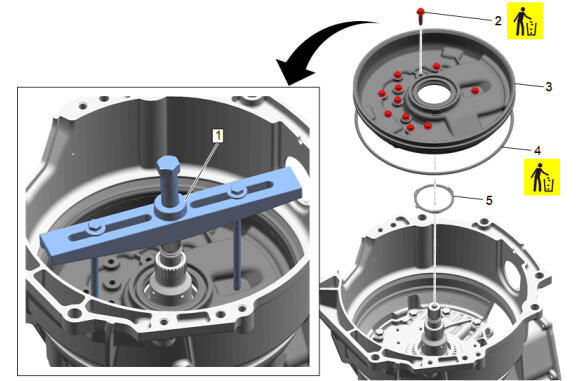

Automatic Transmission Case Front Cover Bolt (2) - Remove and DISCARD
Use the GE-8433 Puller Bar (1) and 2 bolts in the threaded holes of the automatic transmission front cover to remove it from the case.
Automatic Transmission Case Front Cover (3) - Remove
Automatic Transmission Case Front Cover Seal (4) - Remove and DISCARD
Drive Sprocket Thrust Washer- Front (5) - Remove
Courtesy of GENERAL MOTORS COMPANY

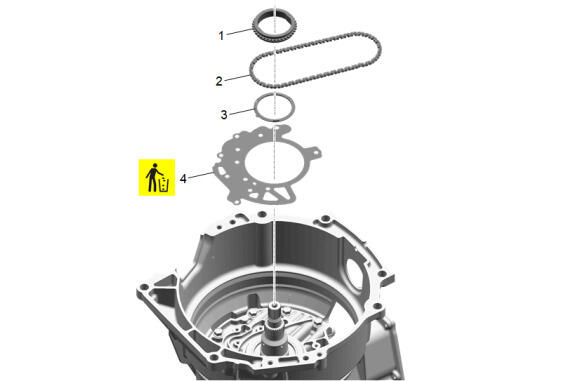

Drive Sprocket (1) - Remove
Drive Link (2) - Remove
Drive Sprocket Thrust Washer- Rear (3) - Remove
Automatic Transmission Front Support Cover Gasket (4) - Remove and DISCARD
