Single Use Fasteners and Components
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
- Automatic Transmission Front Support Cover Gasket
- Automatic Transmission Case Front Cover Seal
- Automatic Transmission Case Front Cover Bolt [11x]

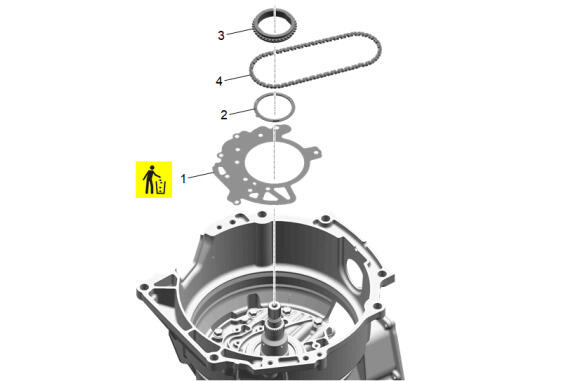

Automatic Transmission Front Support Cover Gasket (1) - Install NEW
- Drive Sprocket Thrust Washer- Rear (2) - Install
- Drive Sprocket (3) - Install
- Drive Link (4) - Install

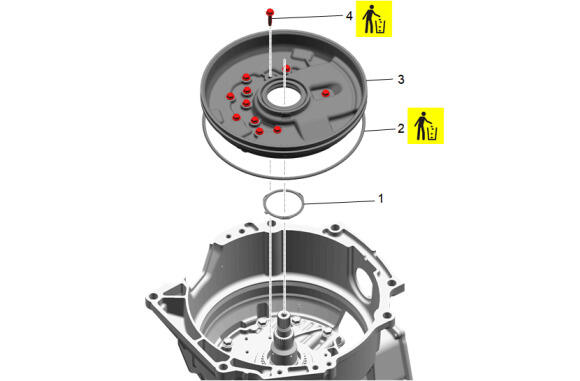

Drive Sprocket Thrust Washer- Front (1) - Install
- Automatic Transmission Case Front Cover Seal (2) - Install NEW
- Ensure the drive link assembly is not pinched by the front cover and moves freely on the drive sprocket.
- Automatic Transmission Case Front Cover (3) - Install
- Automatic Transmission Case Front Cover Bolt (4) - Install NEW and tighten in sequence [11x] - Fastener Specifications
CAUTION:
Refer to Fastener Caution .
