Special Tools

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

DT-50921 Output Carrier/Shaft Lifting Tool

Equivalent regional tools: Special Tools

Courtesy of GENERAL MOTORS COMPANY

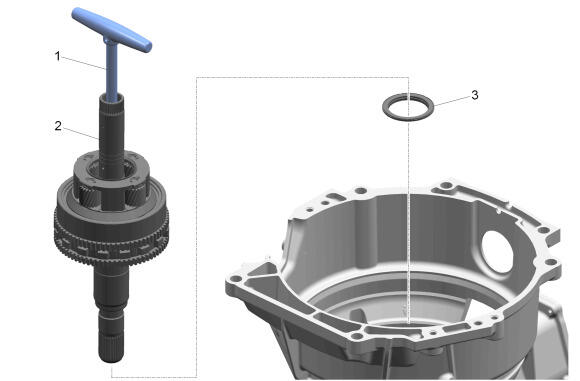

Install the DT-50921 Output Carrier/Shaft Lifting Tool (1) into the Output Carrier (2).
Output Carrier (2) - Remove
Output Carrier Thrust Bearing (3) - Remove
Fig 1: Exploded View Of Reaction Carrier Assembly, Output Carrier And Output Shaft Components
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the park pawl is not engaged.

Reaction Carrier (1) - Remove
Output Carrier (2) - Remove
Output Sun Gear (3) - Remove
Output Carrier Thrust Bearing (4) - Remove
Output Shaft (5) - Remove

NOTE:

The output shaft seal is only present on All Wheel Drive (AWD) models.

Output Shaft Seal - O-Ring (6) - Remove and DISCARD
