DT-50921 Output Carrier/Shaft Lifting Tool

Equivalent regional tools: Special Tools

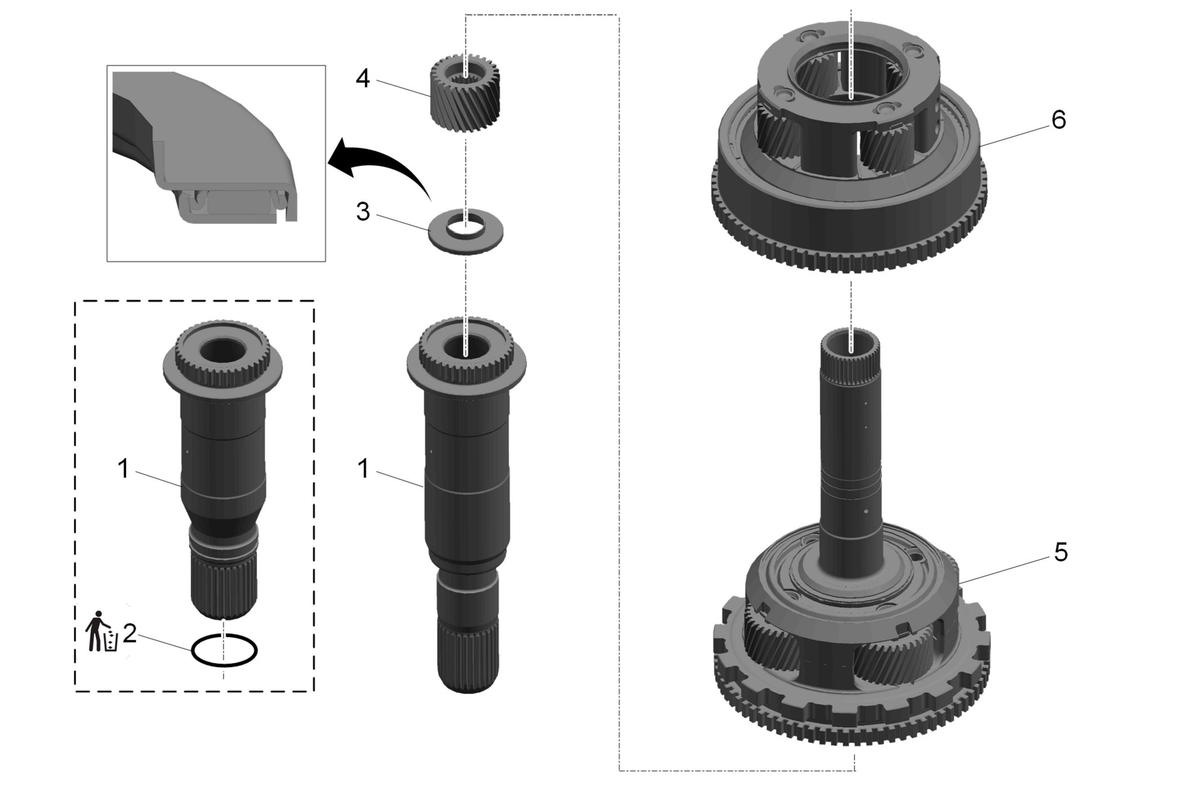

Fig 1: Exploded View Of Reaction Carrier Assembly, Output Carrier And Output Shaft Components
Courtesy of GENERAL MOTORS COMPANY

Output Shaft (1) - Install
Output Shaft Seal - O-Ring (2) - Install NEW
NOTE:
The output shaft seal is only present on All Wheel Drive (AWD) models.
Output Carrier Thrust Bearing (3) - Install
Output Sun Gear (4) - Install
Output Carrier (5) - Install
Reaction Carrier (6) - Install

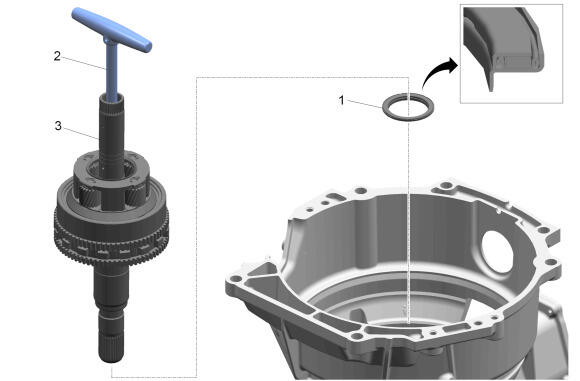

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the park pawl is not engaged.

Output Carrier Thrust Bearing (1) - Install
Using DT-50921 Output Carrier/Shaft Lifting Tool (2), install to Reaction Carrier (3).
Reaction Carrier (3) - Install
